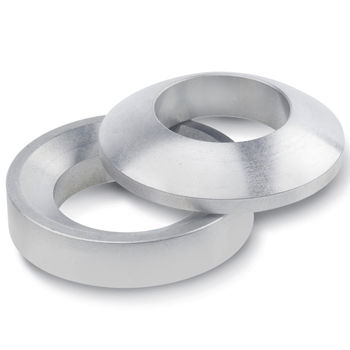

Spherical washer DIN 6319stainless steel
Add to favorites
Compare this product
Characteristics
- Configuration
- spherical
- Material
- stainless steel
- Internal diameter
Max.: 56 mm
(2.2 in)Min.: 6.4 mm
(0.25 in)- External diameter
Max.: 92 mm
(3.622 in)Min.: 12 mm
(0.472 in)- Thickness
Max.: 22 mm
(0.866 in)Min.: 2.3 mm
(0.091 in)
Description
Stainless Steel-Spherical washers DIN 6319 are used for clamping on non-parallel surfaces.
When utilizing Stainless Steel-Hexagon nuts with spherical seating DIN 6330 type B the male washer is redundant.
