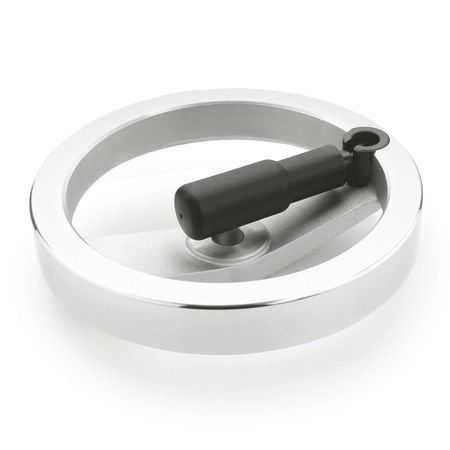

Operating handwheel GN 322.3spokedswing-handlealuminum
Add to favorites
Compare this product
Characteristics
- Function
- operating
- Configuration
- spoked, swing-handle
- Material
- aluminum
- Outside diameter
Max.: 250 mm
(9.84 in)Min.: 125 mm
(4.92 in)- Bore size
Max.: 22 mm
(0.87 in)Min.: 12 mm
(0.47 in)
Description
The handle in the handwheels GN 322.3 is locked in a conical bore in the operating position.
For reversal, it must first be pulled from the cone in axial direction. A pressure spring holds the handle in both positions. When swung out, it automatically engages again.
