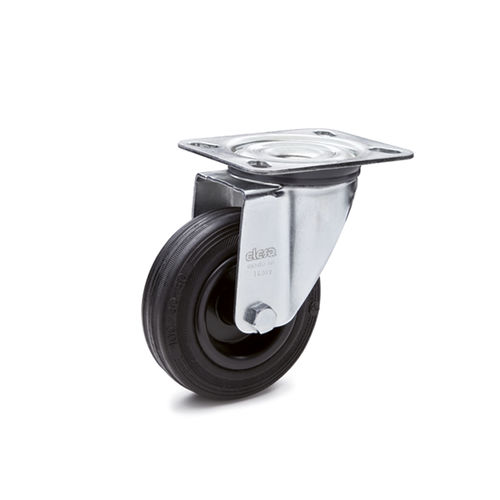

Swivel caster GN 22873base platefor medium loadsindustrial
Add to favorites
Compare this product
Characteristics
- Type
- swivel
- Mount
- base plate
- Other characteristics
- for medium loads, industrial
- Wheel diameter
Max.: 200 mm
(7.874 in)Min.: 80 mm
(3.15 in)
Description
Medium duty casters GN 22873 are used in industrial and public indoor and outdoor areas for moving lightweight carts, for example.
The wheel tread is suitable for all floor types. It is gentle on floors and good at overcomingobstacles. Tread wear may occur on rough floors.
Specification
Wheel tread
Rubber
• - Vulcanized, black
• - Hardness 80 Shore A
Wheel core
Plastic, polypropylene (PP)
Bracket
Steel sheet metalST, zinc plated
Swivel head turning bracket
• - Dual grease-lubricated ball bearing
• - Dust protection ring on type L / LF
Plastic, polyethylene (PE)
Operating temperature -20 °C to +60 °C
