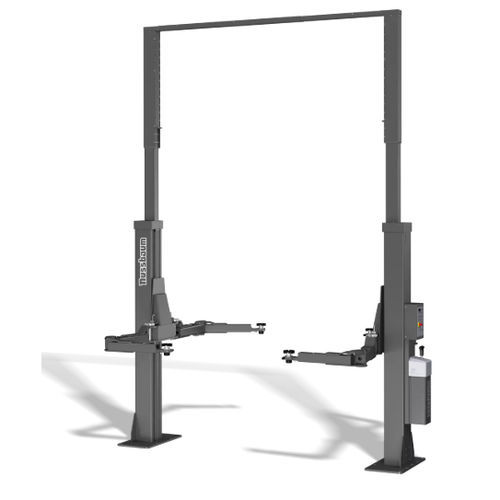

2-post lift POWER HF 3S 5000 DG
5 tonhydraulicfor car

2-post lift - POWER HF 3S 5000 DG - Otto Nussbaum GmbH & Co. KG - 5 ton / hydraulic / for car
2-post lift - POWER HF 3S 5000 DG - Otto Nussbaum GmbH & Co. KG - 5 ton / hydraulic / for car
2-post lift - POWER HF 3S 5000 DG - Otto Nussbaum GmbH & Co. KG - 5 ton / hydraulic / for car - image - 2
2-post lift - POWER HF 3S 5000 DG - Otto Nussbaum GmbH & Co. KG - 5 ton / hydraulic / for car - image - 3
2-post lift - POWER HF 3S 5000 DG - Otto Nussbaum GmbH & Co. KG - 5 ton / hydraulic / for car - image - 4
2-post lift - POWER HF 3S 5000 DG - Otto Nussbaum GmbH & Co. KG - 5 ton / hydraulic / for car - image - 5
Add to favorites
Compare this product


Characteristics

Type
2 posts
Maximum load
5 ton
Operation
hydraulic
Applications
for car
Voltage
400 V
Lifting height

Min.: 120 mm
(4.724 in)

Max.: 2,055 mm
(80.906 in)

Minimum height

Min.: 120 mm
(4.72 in)

Max.: 195 mm
(7.68 in)

Lifting time

31 s

Motor power

3 kW
(4.08 hp)

Width between colums

Min.: 2,790 mm
(109.84 in)

Max.: 3,077 mm
(121.14 in)

Description

The hydraulic 2-post lift Power Lift HF 3S 5000 DG HSV 4900 mm with a load capacity of 5000 kg and double-jointed arms is the only lift in the world with a triple safety system. It is also the ideal lift for the demanding automotive workshop serving all vehicle types, from short small cars to heavy SUVs to long wheelbase vans and vans. With the very fast lifting and lowering times, minimal maintenance (no synchronous cables, no rollers) and the automatic safety lock, it is the ideal lift for daily continuous use in a garage where flexibility and reactivity are required. With the symmetrical telescopic double-jointed arms you can lift a wide range of vehicle sizes and weight classes from Smart/BMW Mini to Mercedes-Benz Sprinter and VW Crafter with a long wheelbase. The Power Lift HF 3S 5000 DG HSV 4900 mm is equipped as standard with the patented Nussbaum technologies NT and HyperFlow® and has been developed and manufactured by Nussbaum since its market launch in 2014 in Kehl-Bodersweier in Baden-Württemberg. The HF 3S series is the result of over 40 years of experience in the manufacturing and development of high-quality automotive lifts Made in Germany. With specially developed in-house technologies, we are the world's only lift manufacturer able to offer you a precise, variable lowering speed and perfect synchronisation without manual maintenance. The ergonomic continuously variable operating lever Nussbaum-Commander enables sensitive lowering and allows the user to change and correct positions in no time at all, all with maximum safety. The main switch attached to the control column can also be secured with a padlock.

VIDEO
