4-post lift COMBI 4.40 S PLUS
4 tonhydraulicfor car

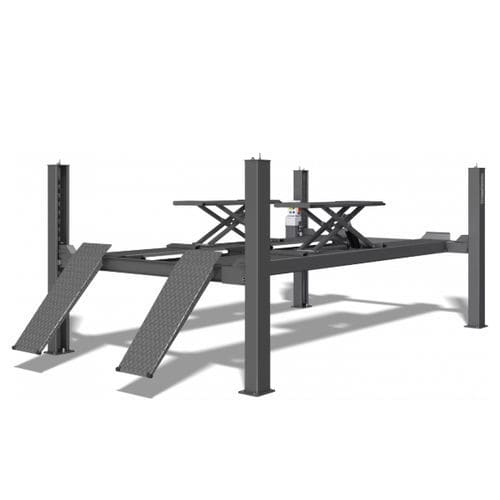

4-post lift - COMBI 4.40 S PLUS - Otto Nussbaum GmbH & Co. KG - 4 ton / hydraulic / for car
4-post lift - COMBI 4.40 S PLUS - Otto Nussbaum GmbH & Co. KG - 4 ton / hydraulic / for car
4-post lift - COMBI 4.40 S PLUS - Otto Nussbaum GmbH & Co. KG - 4 ton / hydraulic / for car - image - 2
4-post lift - COMBI 4.40 S PLUS - Otto Nussbaum GmbH & Co. KG - 4 ton / hydraulic / for car - image - 3
4-post lift - COMBI 4.40 S PLUS - Otto Nussbaum GmbH & Co. KG - 4 ton / hydraulic / for car - image - 4
4-post lift - COMBI 4.40 S PLUS - Otto Nussbaum GmbH & Co. KG - 4 ton / hydraulic / for car - image - 5
4-post lift - COMBI 4.40 S PLUS - Otto Nussbaum GmbH & Co. KG - 4 ton / hydraulic / for car - image - 6
Add to favorites
Compare this product


Characteristics

Type
4 posts
Maximum load
4 ton
Operation
hydraulic
Applications
for car
Voltage
400 V
Other characteristics
platform
Lifting height

Min.: 160 mm
(6.299 in)

Max.: 1,976 mm
(77.795 in)

Minimum height

160 mm
(6.3 in)

Lifting time

40 s

Motor power

3 kW
(4.08 hp)

Width between colums

2,880 mm
(113.39 in)

Description

The hydraulic 4-post lift COMBI LIFT 4.40 S PLUS with a load capacity of 4000 kg and the integrated hydraulic wheel-free lift (RFH) is the perfect lift for the dialogue acceptance, diagnosis, ripening service, body and sill work in the quality and price-conscious auto repair shop.Even as a headlight adjusting place in conjunction with a headlight tester, it always delivers reliable results in headlight adjustment. The wheel-free lift allows free access to the wheels of the vehicle in no time at all. The operator can switch between the stroke of the wheel-free lift and that of the entire lift by simply moving a switch on the operating column. For lower lying vehicles we offer optionally extended ramps with a length of 1600 mm. The COMBI LIFT 4.40 S PLUS can be retrofitted at any time with LED lighting on the runways for even more working comfort, the JAX 2000, JAX 2600 and JAX 3200 axle lifters and thus adapts continuously to the development of your workshop. With the tried and tested Nussbaum hydraulics, the perfectly flat runways, the automatic safety lock every 100 mm by the automatic safety catch, the flexible rail distances, the COMBI LIFT 4.40 S PLUS is the perfect companion for every car workshop, That needs a reliable, inexpensive lift, which is future-proof to all requirements. Fast lifting wheel-free lift (RFH) for all work on tyres and wheels Perfectly flat runways Flexible distance between the runways, adjustable in 50 mm steps Short drive-on ramps with a length of only 1250 mm Can be retrofitted with axle jacks and LED lighting In-ground mounting for perfectly flat runways on request
