4-post lift COMBI 4.40 S PLUS AMS
4 tonhydraulicfor car

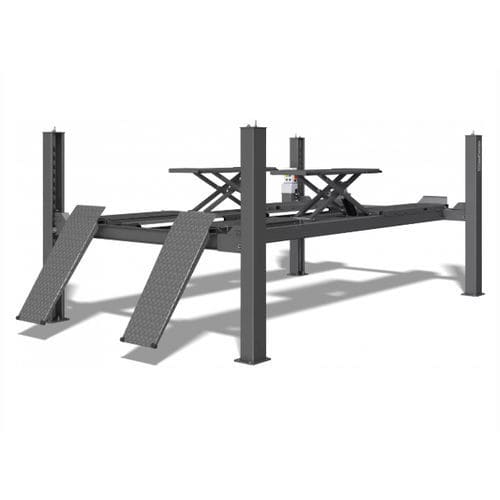

4-post lift - COMBI 4.40 S PLUS AMS - Otto Nussbaum GmbH & Co. KG - 4 ton / hydraulic / for car
4-post lift - COMBI 4.40 S PLUS AMS - Otto Nussbaum GmbH & Co. KG - 4 ton / hydraulic / for car
4-post lift - COMBI 4.40 S PLUS AMS - Otto Nussbaum GmbH & Co. KG - 4 ton / hydraulic / for car - image - 2
4-post lift - COMBI 4.40 S PLUS AMS - Otto Nussbaum GmbH & Co. KG - 4 ton / hydraulic / for car - image - 3
4-post lift - COMBI 4.40 S PLUS AMS - Otto Nussbaum GmbH & Co. KG - 4 ton / hydraulic / for car - image - 4
4-post lift - COMBI 4.40 S PLUS AMS - Otto Nussbaum GmbH & Co. KG - 4 ton / hydraulic / for car - image - 5
4-post lift - COMBI 4.40 S PLUS AMS - Otto Nussbaum GmbH & Co. KG - 4 ton / hydraulic / for car - image - 6
Add to favorites
Compare this product


Characteristics

Type
4 posts
Maximum load
4 ton
Operation
hydraulic
Applications
for car
Voltage
400 V
Other characteristics
platform
Lifting height

Min.: 230 mm
(9.055 in)

Max.: 2,026 mm
(79.764 in)

Minimum height

230 mm
(9.06 in)

Lifting time

40 s

Motor power

3 kW
(4.08 hp)

Width between colums

Min.: 879 mm
(34.61 in)

Max.: 1,129 mm
(44.45 in)

Description

The hydraulic 4-post lift COMBI LIFT 4.40 S PLUS AMS with a load capacity of 4000 kg, with wheel alignment set and integrated hydraulic wheel free lift (RFH) is The perfect lifting platform for wheel alignment, testing technology, dialog acceptance, diagnosis, tire service, work on bodywork and sills in the quality and price-conscious car repair shop.Even as a headlight adjusting place in conjunction with a headlight tester, it always delivers reliable results in headlight adjustment. The wheel alignment set integrated in the runways of the lift for precise wheel alignment consists of a sliding plates at the back of the runways and recesses for the turntable in the front area. The wheel-free lift allows free access to the wheels of the vehicle in no time at all. The operator can switch between the stroke of the wheel-free lift and that of the entire lift by simply moving a switch on the operating column. For lower lying vehicles we offer optionally extended ramps with a length of 1600 mm. The COMBI LIFT 4.40 S PLUS AMS can be retrofitted at any time with LED lighting on the runways for even more working comfort, the JAX 2000, JAX 2600 and JAX 3200 axle lifters and thus adapts continuously to the development of your workshop. With the tried and tested Nussbaum hydraulics, the perfectly flat runways, the automatic safety lock every 100 mm by the automatic safety catch, the flexible rail distances, the COMBI LIFT 4.40 S PLUS AMS is the perfect companion for every car workshop, that needs a reliable, inexpensive lift, which is future-proof to all requirements. Integrated wheel alignment set with sliding plates and recesses for turntable
