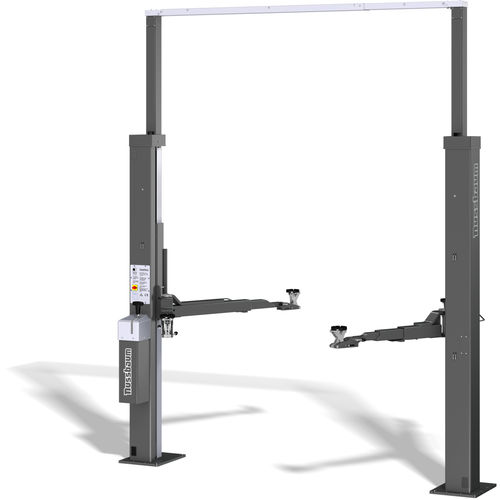

2-post lift POWER HF 3S 3500 MM
3.5 tonhydraulicfor car

2-post lift - POWER HF 3S 3500 MM - Otto Nussbaum GmbH & Co. KG - 3.5 ton / hydraulic / for car
2-post lift - POWER HF 3S 3500 MM - Otto Nussbaum GmbH & Co. KG - 3.5 ton / hydraulic / for car
2-post lift - POWER HF 3S 3500 MM - Otto Nussbaum GmbH & Co. KG - 3.5 ton / hydraulic / for car - image - 2
2-post lift - POWER HF 3S 3500 MM - Otto Nussbaum GmbH & Co. KG - 3.5 ton / hydraulic / for car - image - 3
2-post lift - POWER HF 3S 3500 MM - Otto Nussbaum GmbH & Co. KG - 3.5 ton / hydraulic / for car - image - 4
2-post lift - POWER HF 3S 3500 MM - Otto Nussbaum GmbH & Co. KG - 3.5 ton / hydraulic / for car - image - 5
2-post lift - POWER HF 3S 3500 MM - Otto Nussbaum GmbH & Co. KG - 3.5 ton / hydraulic / for car - image - 6
Add to favorites
Compare this product


Characteristics

Type
2 posts
Maximum load
3.5 ton
Operation
hydraulic
Applications
for car
Voltage
400 V, 220 V
Other characteristics
platform
Lifting height

Min.: 75 mm
(2.953 in)

Max.: 2,045 mm
(80.512 in)

Minimum height

Min.: 75 mm
(2.95 in)

Max.: 185 mm
(7.28 in)

Lifting time

23 s, 26 s

Motor power

3 kW
(4.08 hp)

Width between colums

Min.: 2,470 mm
(97.24 in)

Max.: 2,765 mm
(108.86 in)

Description

The hydraulic 2-post lift Power Lift HF 3S 3500 MM with a load capacity of 3500 kg and asymmetrical Mini Max arms, the world's only lift with a triple safety system. The Power Lift HF 3S 3500 MM is the ideal lift for daily continuous use in a consistently busy garage where only the best is good enough. With their fast lifting and lowering times, with its two redundant hydraulic systems and the automatic safety latch, it is the perfect blend of maximum safety and performance. The Mini Max support plates allow easy access to the pick-up points of lowered vehicles, vehicles with deep-drawn side skirts or off-road vehicles.. The support plates can be conveniently raised to the subfloor by foot after swivelling in. The Power Lift HF 3S 3500 MM is equipped as standard with the patented Nussbaum NT and HyperFlow® technologies ausgestattet and is developed and produced by Nussbaum in Kehl-Bodersweier in Baden-Württemberg . The HF 3S series is the result of over 40 years of experience in the manufacture and development of high-quality automotive lifting platforms Made in Germany. With specially developed, in-house technologies, we are the only lift manufacturer in the world that can provide you with a precise, variable lowering speed and an always perfect synchronisation without manual maintenance effort anbieten. The ergonomic, stepless operating lever Nussbaum-Commander enables sensitive lowering and allows the user to change and correct positions in the twinkling of an eye, all with maximum safety. The Power Lift HF 3S 3500 MM is not only safe, but also exceptionally flexible and can be adapted to a wide range of workshop sizes and configurations.
