2-post lift POWER HF 3S 4000 UNI
4 tonhydraulicfor car

2-post lift - POWER HF 3S 4000 UNI - Otto Nussbaum GmbH & Co. KG - 4 ton / hydraulic / for car
2-post lift - POWER HF 3S 4000 UNI - Otto Nussbaum GmbH & Co. KG - 4 ton / hydraulic / for car
2-post lift - POWER HF 3S 4000 UNI - Otto Nussbaum GmbH & Co. KG - 4 ton / hydraulic / for car - image - 2
2-post lift - POWER HF 3S 4000 UNI - Otto Nussbaum GmbH & Co. KG - 4 ton / hydraulic / for car - image - 3
Add to favorites
Compare this product


Characteristics

Type
2 posts
Maximum load
4 ton
Operation
hydraulic
Applications
for car
Voltage
400 V
Other characteristics
platform
Lifting height

Min.: 115 mm
(4.528 in)

Max.: 2,050 mm
(80.709 in)

Minimum height

Min.: 115 mm
(4.53 in)

Max.: 190 mm
(7.48 in)

Lifting time

26 s

Motor power

3 kW
(4.08 hp)

Width between colums

Min.: 2,400 mm
(94.49 in)

Max.: 2,646 mm
(104.17 in)

Description

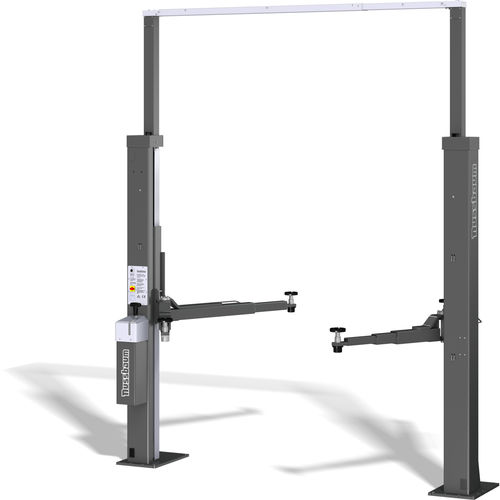

The hydraulic 2-post lift Power Lift HF 3S 4000 UNI with a load capacity of 4000 kg and asymmetrical universal arms, the world's only lift with a triple safety system. The Power Lift HF 3S 4000 UNI is the ideal lift for daily continuous use in a consistently busy garage where only the best is good enough. With their fast lifting and lowering times, with its two redundant hydraulic systems and the automatic safety latch, it is the perfect blend of maximum safety and performance. With the universal arms consisting of a long single telescopic arm and a short double telescopic arm you can lift a wide range of vehicle sizes and weight classes from Smart to Mercedes Sprinter and VW Crafter with long wheelbase. The Power Lift HF 3S 4000 UNI is equipped as standard with the patented Nussbaum NT and HyperFlow® technologies ausgestattet and is developed and produced by Nussbaum in Kehl-Bodersweier in Baden-Württemberg . The HF 3S series is the result of over 40 years of experience in the manufacture and development of high-quality automotive lifting platforms Made in Germany. With specially developed, in-house technologies, we are the only lift manufacturer in the world that can provide you with a precise, variable lowering speed and an always perfect synchronisation without manual maintenance effort anbieten. The ergonomic, stepless operating lever Nussbaum-Commander enables sensitive lowering and allows the user to change and correct positions in the twinkling of an eye, all with maximum safety. The pulling hydraulic cylinders protect the hydraulic circuit even during intensive use and require very little energy.

Catalogs

No catalogs are available for this product.
