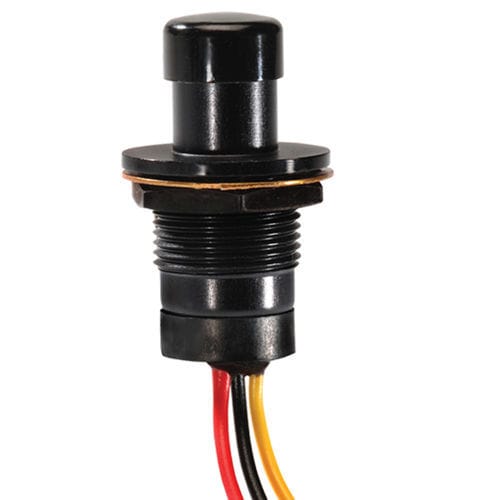

Mushroom push-button switch HPL series

watertightruggedIP64

The HPL Hall Effect Linear Output Pushbutton Switch utilizes Hall Effect technology to provide an output proportional to the travel of the button. The HPL delivers up to 10 million cycles. This rugged switch is ideal for applications where a simple on/off control is insufficient and a linear output is desired. Using the HPL, an operator can control the motion of a device as well as the speed of the movement. The HPL switch is an ideal control device for valves and variable speed drives, and can be used in industrial control, heavy equipment and material handling applications. The HPL is offered as a stand-alone switch and in a dual HPL rocker assembly. As with all OTTO switches, a wide variety of case and button styles and colors are offered, along with various termination styles and two levels of sealing. OTTO can provide custom configurations as well as provide the HPL switches installed in a control grip. • Programmable outputs of 0.5 to 4.5 volts • 10 million cycles full stroke per button (IP64) • Hall effect for reliable contactless switching • Watertight per IP68S available • Front or behind panel mounting • Choice of termination styles • Rocker version available • RoHS compliant
