Hall effect foot switch HJFC

controlsingle pedalcorrosion-resistant

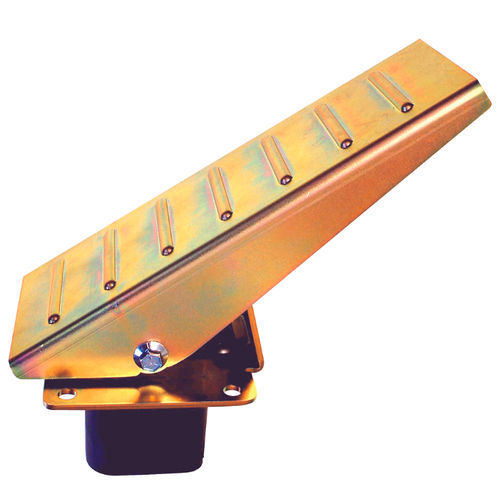

The HJFC Hall Effect Foot Pedal is built to perform under the worst possible conditions. The unique design places Hall Effect sensors and electronics behind a solid plastic diaphragm that separates the top and bottom halves of the front pedal, sealing the electronics in an IP68S rated enclosure. The bottom half of the pedal utilizes the same proven contactless analog output Hall Effect technology used in OTTO joysticks and is available in J1939 and CANopen® formats. The CAN interface provides three analog input channels, 12 digital input channels and two digital output channels. It will withstand operating temperature extremes of -40°C to +85°C, is sealed to IP68S immersion requirements and passes EMI/RFI immunity testing to 100V/M. •Outstanding EMI/RFI immunity •Heavy gauge, corrosion-resistant metal •Proven contactless analog output Hall effect technology •J1939, CANopen® formats available •Life expectancy of 9 million cycles •Hall sensors & electronics are sealed against the elements, behind a solid plastic diaphragm that separates the top & bottom halves of the foot pedal •Electronics are sealed to IP68S •Pedal pivot point sealed against large debris •Programmable pretravel (dead band) & overtravel along with minimum & maximum output •Sensor programming is completed in automated fixtures during assembly ensuring tight output tolerances •Reverse polarity protection available •RoHS compliant
