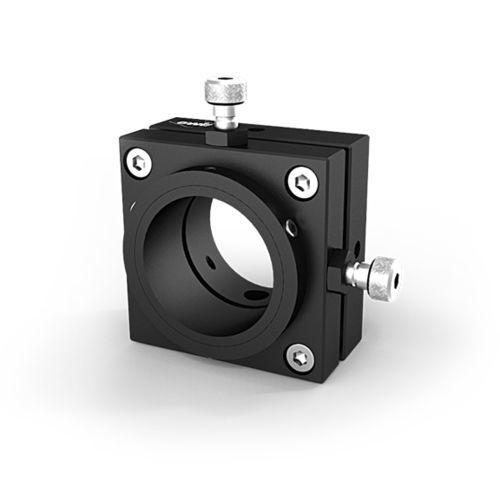

Optical polarizer holder TRANS 40T-D25-XYZ

3-axisaluminum

•for use with SYS 40 •XY adjustment with lateral fine-thread screws and theta-phi adjustment •2 holes to fix optics with ø 25 mm CHARACTERISTICS •for use with SYS 40 •deformation-resistant aluminium •reflection-poor, black anodized •XY adjustment with lateral fine-thread screws and theta-phi adjustment •2 holes to fix optics with ø 25 mm ways of installing •on slide RT 40-20-R •on slide RT 40-20-R-LL •on pin •on an optical table via adapter plate The TRANS 40T-XY transmitting mounts with disc springs are based on TRANS 40T transmitting mounts, but with additional XY adjustment (comparable to the OH 40 XY adjusting mounting plates). This construction allows you to adjust an optical part in XY direction as well as in theta-phi and Z direction. Since an allen key is needed for adjustment of the tilting, unintentional disturbance of a setting is practically impossible. In addition, this design is extremely compact, so that the TRANS 40T-XY are suitable for use in industrial applications. As with the standard versions, there is the possibility for mounting two optics. Beside the adjustable element, a filter or a similar component can be fitted not influencing existing space.
