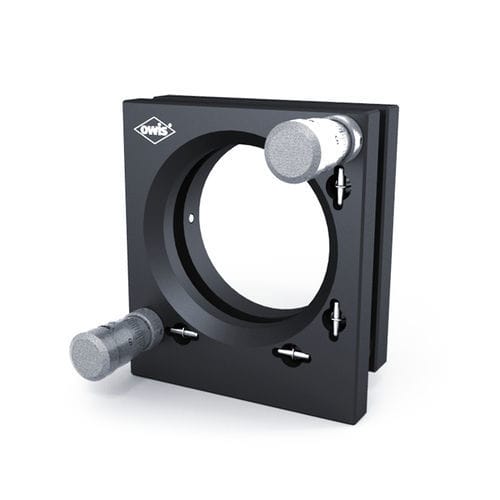

Optical polarizer holder TRANS 80 series

XYaluminum

•for use with SYS 90 •theta-phi adjustment •direct installation or via a base plate, in which case the X and Y direction can be moved and the mirror plane rotated with the slots CHARACTERISTICS •for use with SYS 90 •deformation-resistant aluminium •reflection-poor, black anodized •theta-phi adjustment ways of installing •using the central M8 threaded hole or the two M6 threaded holes •directly or via a base plate, in which case the X and Y direction can be moved and the mirror •plane rotated with the slots •with FP 70x70x15 on a slide RT 90-80-R option •gimbal The TRANS 80 transmitting mounts are offered for mounted optics with 56 mm outside diameter or unmounted optics ø 50.8 mm (2"). They are available for mounts or unmounted elements up to 65 mm diameter upon request. The transmitting mounts can be supplied with fine-thread screws or micrometers. The suitable base for use in SYS 90 can be supplied upon request.
