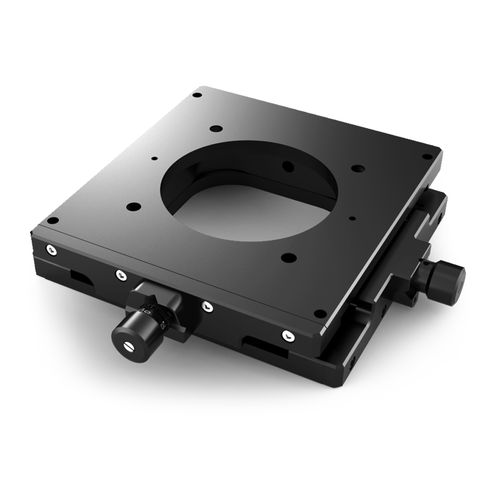

Linear stage KT 150 series

XYmanual2-axis

travel range 20 mm aperture ø 65 mm fine-thread spindle with clamping CHARACTERISTICS travel range 20 mm aperture ø 65 mm fine-thread spindle with clamping high load capacity deformation-resistant aluminium reflection-poor, black anodized way of installing on optical table option wobble plate with ø 100 mm The XY stages KT 150 have a high-precision double-dovetail guide. The aperture is ø 65 mm and the travel range 20 mm. They are equipped with fine-thread spindles with graduated buttons and can be used in any application because of the bidirectionally operating fine-thread spindles.
