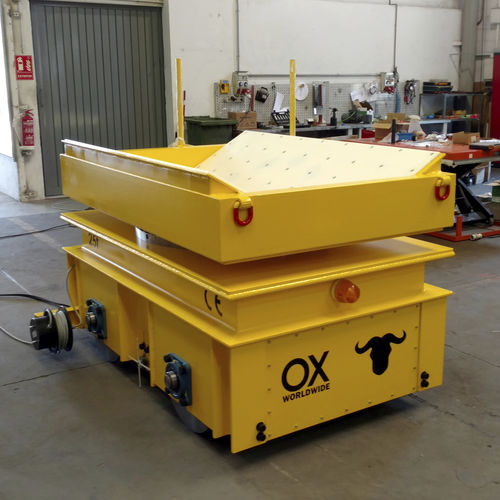

Coil car CC Series

wheel-mountedfor the iron and steel sectorspecial

Coil car, autonomous trolleys and motorized assemblies are mobile platforms for the transport of all types of loads. The transport surface of the Coil car, Rails car, Transer car and Autonomous car can be flat, with support sleepers, or can be integrated specific elements such as cradles, in double wedge to support rounds such as ferrules or coils,in the direction of the march or also crosswise and one or several coils or rolls of strips with anti-tilt system. Thanks to their versatility, they have an unlimited field of application in sectors of heavy industry, automotive molds, steel mills, aereogeneration, etc… The structure of the Coil Car is manufactured in construction steel and designed very robust according to FEM and DIN EN 13155 standards. ― There are different classifications of Coil cars according to the type of wheels: – On rails. With straight path rails, with curved path or even with crossings with other rails. – On floor with Polyurethane wheels (Vulkollan type) usually Shore 85ºA for interior or mass rubber for exterior. – Conventional movement (rear-wheel drive type) a steering axle and another drive axle. – Dual axis movement, two axes both directives and motors simultaneously. – Omnidirectional movement (multi-wheeler type), several sets of wheels that include independent traction and rotation allowing displacements in all directions. ― Coil Car Ox Classification by type of Power source: – Power source by means hose reel. – Powered through batteries. – Powered by magnetic induction. YOU CAN DOWNLOAD THIS SPECIFIC CATALOG FROM THE CATALOG AREA (top tab) + INFO: https://oxworldwide.com/coil-car/
