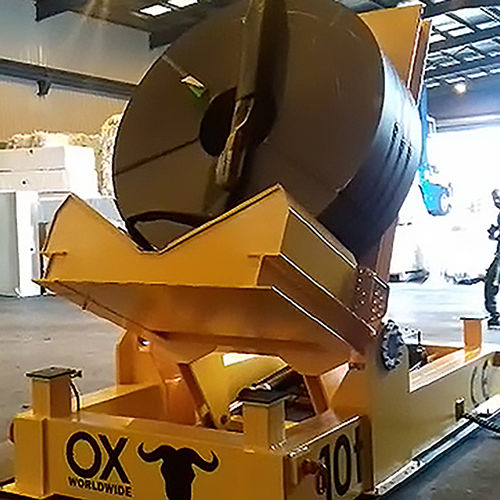

Drum rotator LR Series

loadelectrichydraulic

We design and manufacture Ox turning devices allow 90º turns for horizontal or vertical placement of all types of loads: compost, drums, pallets, bodies, containers, coils, boxes, manure, masonry material, containers The common Load Tilters are support platforms where a piece is seated on two sides and allows it to be tilted in a tilt range of around 90 degrees for pieces such as coils or palletized steel round materials or other prismatic pieces such as dies, molds, etc. There are also special versions to tilt up to 180 degrees, to tilt plates or dies and put them upside down or vice versa. MATERIALS AND FINISH The materials used for the chassis are steel of mechanical construction and the finish is sandblasted Sa 2.5 according to ISO 8503-2: 2012 standards. Painted minimum quality C2, epoxy polyurethane primer layer and 2 layers of RAL 1028 color. For other qualities please ask us. DIRECTIVES We comply with the provisions of the directives of the European Parliament and of the Council 2006/42 / EC, of May 17, 2006, regarding the approximation of the legislations of the member states on machines and Directive 2014/30 / EU of the European Parliament and of the Council of 26 February 2014 on the harmonization of the laws of the Member States on electromagnetic compatibility, and has been manufactured in accordance with the following harmonized standards: – UNE-EN ISO 12100: 2012. Machine safety. General principles for design. Risk assessment and risk reduction. – UNE-EN ISO 3834-2: 2006. Quality requirements for fusion welding YOU CAN DOWNLOAD THIS SPECIFIC CATALOG FROM THE CATALOG AREA (top tab) +INFO: https://oxworldwide.com/turning-devices/
