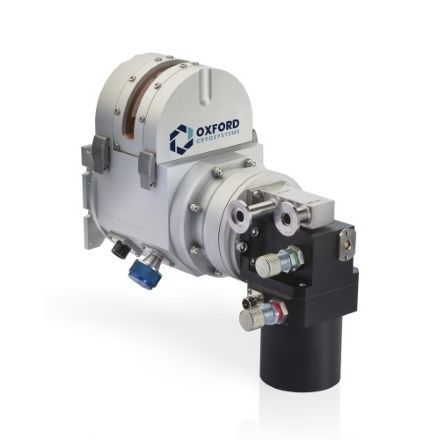

Circulating cryostat PHENIX

The PheniX is a unique closed cycle helium cryostat specifically designed for powder diffraction at very low temperatures. Our design is easy to set up and facilitates accessibility to the sample stage. The PheniX can be mounted onto a vertical goniometer, and supplied with mounting plates for various powder systems. Our team of experts is on hand to advise you on the integration of the PheniX with your powder diffractometer. Get in touch today to arrange a free, no obligation chat. • Base temperature of 12K without liquid cryogens. • Fast cool down time, 20 K in 45 minutes, 12 K in 60 minutes. • Warm up time of only 40 minutes for fast sample change • High stability of 0.1 K • Complete programmability and ability to monitor and control remotely via Cryoconnector software and Oxford Connect • Temperature range:12- 290 K • Temperature stability: 0.1 K • Cool down times: 40 minutes to 20 K, 60 minutes to 12 K • Cryostat dimensions & weight: 120 mm W x 302mm L x 259 mm H, 6 kg • Window materials: PheniX lid windows 0.25mm carbon fibre ,radiation shield windows 0.005mm mylar • Sample mounts: 20mm diameter Chromium-plated copper flat and 20mm diameter Chromium-plated copper sample holder with 1mm recess
