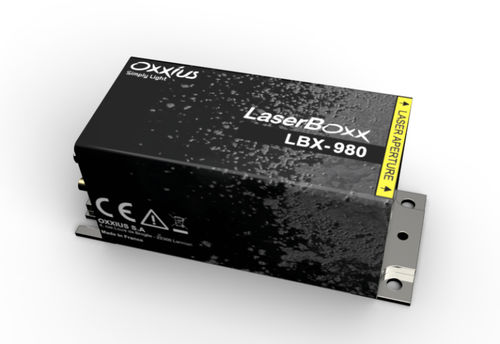

Continuous laser diode LBX-980
fibervisiblemarking

continuous laser diode
continuous laser diode
continuous laser diode
continuous laser diode
Add to favorites
Compare this product


Characteristics

Operational mode
continuous
Technology
fiber
Spectrum
visible
Applications
microscopy, marking
Other characteristics
fiber-coupled, compact, modulated, single-mode, multimode, low-noise, rugged
Power

0.14 W, 0.16 W, 0.2 W

Wavelength

980 nm

Description

The LBX-980 LaserBoxx consists of a laser diode emitter with an integrated driver. It provides a low-noise optical output, utlra-high beam quality and allows for fast modulation. The LBX LaserBoxx offers an excellent stability and fast modulation capabilities. It makes it the best product for Fluorescence microscopy, Super resolution Imaging, Confocal Microscopy, Flow citometry, DNA Sequencing, Optogentics, Polymer curing, Material analysis and Laser marking. LBX-980 is compatible in the L4Cc Combiner and L6Cc Combiner . It provides with : • Integrated control electronics • SM/PM/MM fiber coupling options • USB and RS232 interfaces • Dedicated control software • External controller with power display (Plug&Play versions, CDRH-compliant) Fiber coupling Fiber coupling options offer rugged and compact solutions to couple LaserBoxx into polarization maintaining fiber, standard single mode fiber or multimode fiber. Electro-Mechanical shutter The ACX-SHTE is a compact and affordable electro-mechanical shutter. It is mounted directly on the LCX or LPX in place of the standard manual shutter. The fiber coupling and other options are fully compatible with the electro mechnical shutter. The ACX-SHTE is actuated via the LCX or LPX embedded software or via a standard TTL signal.
