High-power laser diode LBX-980-HPE

CWsolid-statevisible

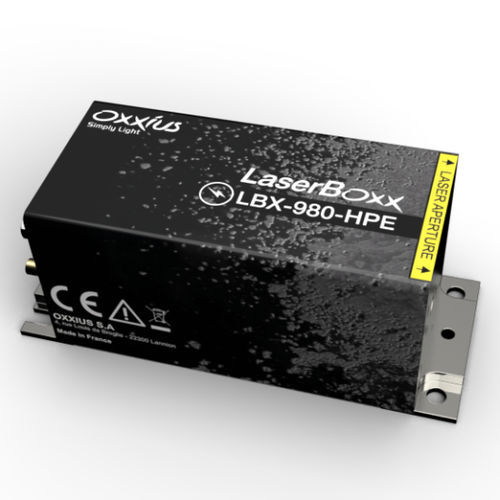

The LaserBoxx HPE series is a high power laser diode module offering excellent performance and reliability in a compact driver integrated laser head (industry standard compact package). It comes in free space multimode elliptical beam or with removable MM fiber coupling. Made for Microscopy, Medical, Illumination, High-Throughput inspection, Polymer curing, Laser pumping and sensor applications. The LBX-980-HPE is compatible in the L6CC-HPE Combiner . It provides with : • Integrated control electronics • USB and RS232 interfaces • Dedicated control software External controller with power display (Plug&Play versions, CDRH-compliant) Multimode fiber coupling The ACX-FCMM option offers a cost-effective and compact way to couple the LaserBoxx beam into a multimode fiber. The coupling efficiency exceeds 80% Standard patchcord configuration : • 0.22 numerical aperture, • SMA connector, • 2 m fiber length Other configuration on demand Heat sink Forced air heat sink for LBX, LCX with 5V PSU
