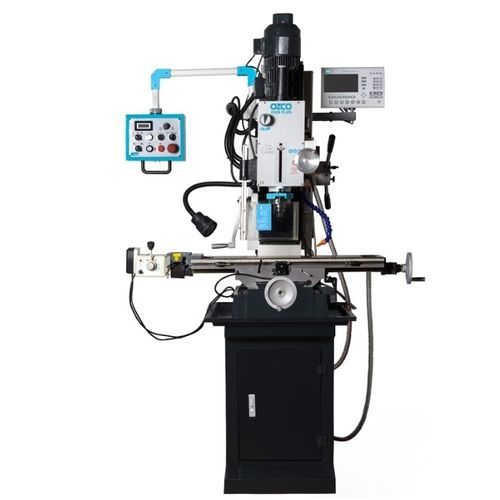

3-axis milling machine FS28 Plus verticalbench-topautomatic
Add to favorites
Compare this product
Characteristics
- Number of axes
- 3-axis
- Spindle orientation
- vertical
- Structure
- bench-top
- Other characteristics
- automatic, CE
- Associated function
- drilling
- X travel
480 mm, 560 mm
(18.9 in, 22.05 in)- Y travel
200 mm
(7.87 in)- Z travel
430 mm
(16.93 in)- Power
1.5 kW
(2.04 hp)
Description
• Automatic milling machine with X-axis power
feed motor
• Automatic milling machine with Z-axis power
feed motor
• LCD digital 3 axis readout
• Thread tapping mode
• Height-adjustable milling machine guard (chuck cover) with safety switch
• Digital speed reader
• Cooling system
• Machine lamp
• Control panel
• Pre-assembled steel cabinet
• Operating tools
210104: MT4-B16 morse taper
210204: MT4-ER32 collet sets,18 pcs
220042: MT4-MT2 reduction sleeve
220043: MT4-MT3 reduction sleeve
250125: Milling vice 125 mm
260100: Rotary table 100 mm
270012: 14 mm T slotted, M12 mold set
Drilling Capacity - 32 mm
End Mill (Finger Milling) Capacity - 28 mm
Face Milling Capacity - 63 mm
Table Size - 800x240 mm
T-slot Size - 3x14 mm
Spindle Taper - MK4
Spindle Speed - 75-2500 rpm
Number of Steps - 2 (Vario Speed Adjustment)
Quill Travel - 120 mm
Spindle Feed - 0.10, 0.18, 0.26 mm/rev
Headstock Rotation - ±45°
Spindle-Table Distance - 460 mm
Spindle-Column Distance - 275 mm
Machine Size - 1240x930x2100 mm
Net Weight - 480 Kg
