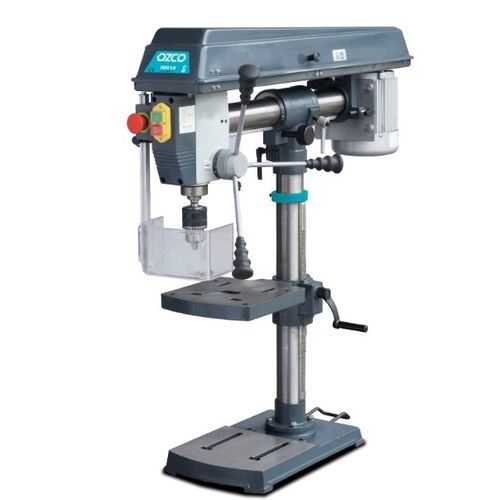

Vertical drilling machine MR16

radialbelt-driven

CE Certificate • Emergency STOP button • Drill press safety shield/Visorguard/ • Pulley drive belt (pulleys guard) cover Adjustable safety shield (visor guard) Drive belt tension lever / belt tension handle Powerful (durable), highly efficient copper motor Right / Left Rotation (Three-phase / 400 V motor) Ground table with diagonal (‘’X’’ crossed) T-slots Depth stop to control / lock drilling depth Professional ergonomic rubber grips on handles for accuracy and ease of use Aluminum pulley belt cover High quality cast iron base (Precision) Working table, tiltable from -45 ° to + 45 ° and rotating 360° around the column Precision keyless chucks Cast iron base for low vibration and stable operation Spindle-Column Distance - 115-430 mm Spindle Taper - MK2 Spindle Stroke (Spindle Travel) - 80 mm Number of Steps - 5 Table Size - 200x200 mm T-slot Size - 14 mm Table Tilt / Rotation - ±45° / 360° Spindle-Table Distance - 420 mm Spindle to Base Distance - 535 mm Base Size - 340x210 mm Column Diameter - 58 mm Dimensions (L x W x H) - 800x300x855 mm
