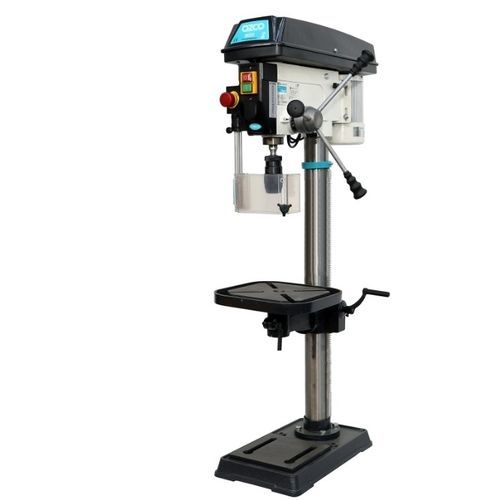

Vertical drilling machine M25

column typebelt-drivenMK3

EC Certificate (Accordance with CE standards) • Emergency STOP button • Drill press safety shield/Visorguard/ • Pulley drive belt (pulleys guard) cover Adjustable safety shield (visor guard) Drive belt tension lever (except for M13)/ belt tension handle Powerful (durable), highly efficient copper motor Right / Left Rotation (Three-phase / 400 V motor) Ground table with diagonal (‘’X’’ crossed) T-slots Depth stop to control / lock drilling depth Professional ergonomic rubber grips on handles for accuracy and ease of use Aluminum pulley belt cover (except for M13, pulley belt cover is made of steel) High quality cast iron base (except for M13, the base is from steel) (Precision) Working table, tiltable from -45 ° to + 45 ° and rotating 360° around the column Precision keyless chucks (except for M13, key-type chuck) Cast iron base for low vibration and stable operation Spindle-Column Distance - 177 mm Spindle Stroke (Spindle Travel) - 85 mm Number of Steps - 12 Table Size - 290x290 mm T-slot Size - 14 mm Table Tilt / Rotation - ±45° / 360° Spindle-Table Distance - 700 mm Spindle to Base Distance - 1190 mm Base Size - 460x272 mm Column Diameter - 80 mm Dimensions (L x W x H) - 650x360x1570 mm
