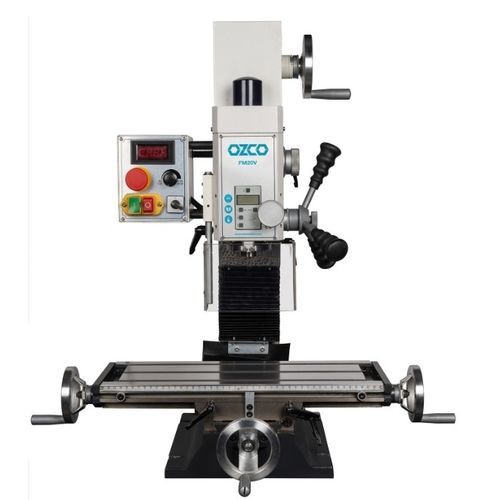

3-axis milling machine FM20V verticalbench-topautomatic
Add to favorites
Compare this product
Characteristics
- Number of axes
- 3-axis
- Spindle orientation
- vertical
- Structure
- bench-top
- Other characteristics
- automatic, CE
- Associated function
- drilling
- X travel
280 mm
(11.02 in)- Y travel
175 mm
(6.89 in)- Z travel
270 mm
(10.63 in)- Power
750 W
(1.02 hp)
Description
Right / Left Rotation
• Height-adjustable protection guard with (safety) switch
• Digital depth reader
• ±45° angle head (head pivots 45 degree left and right)
• MT2 / M10 Morse taper sleeves
• Operating tools
210102: MT2-B16 morse taper
210202: MT2-ER25 collet sets, 19 pcs
215120: X axis power feed
250100: Milling vice 100mm
250125: Milling vice 125mm
260100: Rotary table 100 mm
270010: 12 mm T slotted, M10 tool clamping set
295020: Stand
Drilling Capacity - 16 mm
End Mill (Finger Milling) Capacity - 20 mm
Face Milling Capacity - 63 mm
Table Size - 500x180 mm
T-slot Size - 3x12 mm
Spindle Taper - MK2
Spindle Speed - 50-2550 rpm
Number of Steps - 2 / Varyatörlü
Quill Travel - 50 mm
Headstock Rotation - ±45°
Spindle-Column Distance - 185 mm
Machine Size - 750x560x930 mm
Net Weight - 105 Kg
