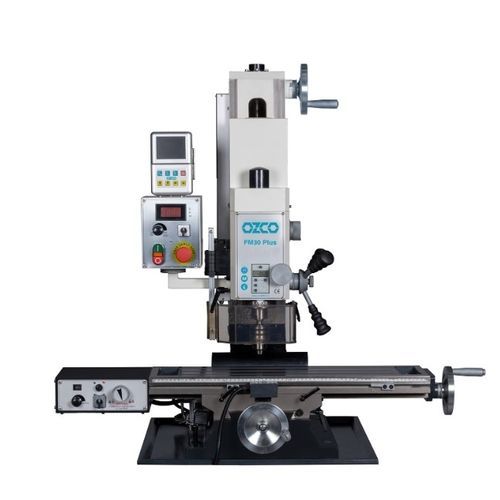

3-axis milling machine FM30 Plus

verticalbench-topCE

• Right / Left Rotation • Height-adjustable protective screen with micro switch • (Height-adjustable protection guard with (safety) switch) • Digital depth reader • ±45° angle head (head pivots 45 degree left and right) • CE Standard • X-axis power feed motor is pre-assembled on the machine • Integrated digital 3 axis readout • MT3 / M12 Morse taper sleeves • Operating tools 210102: MT2-B16 morse taper 210202: MT2-ER25 collet sets, 19 pcs 215130: X axis power feed 250100: Milling vice 100mm 250125: Milling vice 125mm 260100: Rotary table 100 mm 270010: 12 mm T slotted, M10 tool clamping set 295030: Stand Drilling Capacity - 32 mm End Mill (Finger Milling) Capacity - 25 mm Face Milling Capacity - 80 mm Table Size - 700x210 mm T-slot Size - 3x14 mm Spindle Taper - MK3 Spindle Speed - 50-2250 rpm Number of Steps - 2 / Varyatörlü Quill Travel - 70 mm Headstock Rotation - ±45° Spindle-Column Distance - 90 mm Machine Size - 1000x800x1200 mm Net Weight - 230 Kg
