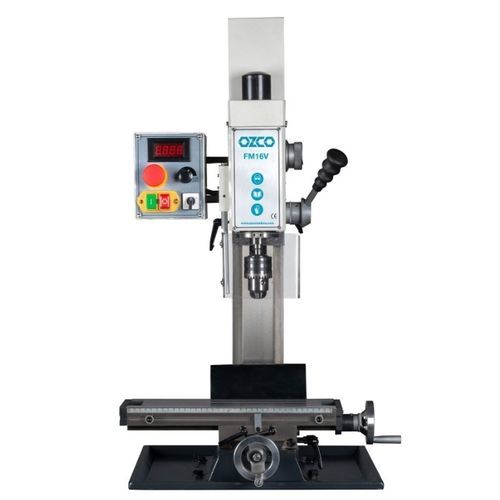

3-axis milling machine FM16V verticalbench-topautomatic
Add to favorites
Compare this product
Characteristics
- Number of axes
- 3-axis
- Spindle orientation
- vertical
- Structure
- bench-top
- Other characteristics
- automatic, CE
- Associated function
- drilling
- X travel
220 mm
(8.66 in)- Y travel
160 mm
(6.3 in)- Z travel
210 mm
(8.27 in)- Power
600 W
(0.82 hp)
Description
• Right / Left Rotation
• Height-adjustable milling machine guard (chuck cover) with safety switch
• Digital depth reader
• ±45° angle head (head pivots 45 degree left and right)
MT2 / M10 Morse taper sleeves
Operating tools
215116: X axis power feed
250100: Drill vice 100mm
250125: Drill vice 125mm
260100: Rotary table 100 mm
270008: 10 mm T slotted, M8 tool clamping set
295016: Stand
Drilling Capacity - 16 mm
End Mill (Finger Milling) Capacity - 16 mm
Face Milling Capacity - 50 mm
Table Size - 400x120 mm
T-slot Size - 3x10 mm
Spindle Taper - MK2
Spindle Speed - 50-2250 rpm
Number of Steps - 2 / Varyatörlü
Quill Travel - 50 mm
Headstock Rotation - ±45°
Spindle-Column Distance - 175 mm
Machine Size - 500x465x791 mm
Net Weight - 70 Kg
