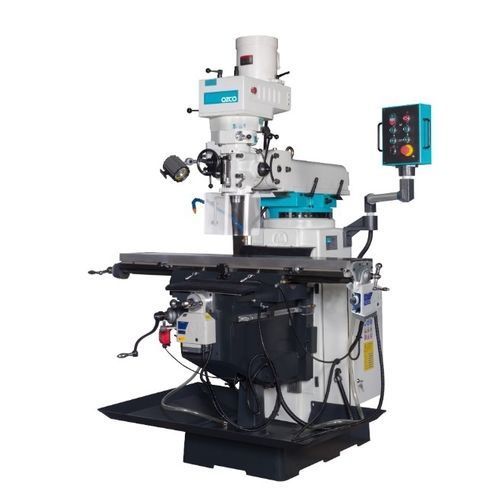

3-axis milling machine F4 ProverticalautomaticCE
Add to favorites
Compare this product
Characteristics
- Number of axes
- 3-axis
- Spindle orientation
- vertical
- Other characteristics
- automatic, CE
- X travel
825 mm
(32.48 in)- Y travel
400 mm
(15.75 in)- Z travel
406 mm
(15.98 in)- Power
3.75 kW
(5.1 hp)
Description
• High quality Meehanite cast iron design
• Height-adjustable chuck cover
• Schneider Electric System
• X- axis Geared power feed Motor
• Y-axis Automatic power feed Motor
• Automatic milling machine with Z-axis Rapid feed Motor
• Turcite-B coated Slideways (Bedways)
• Machine lamp
• Cooling system
• Chip tray
• Milling (collet) chuck set 15-part ISO 40
• Mold set
• Milling vice
• Operating tools
210106: ISO40-B16 morse taper
210206: ISO40-ER40 collet set, 15 pcs
220404: ISO40-MT4 reduction sleeve
250160: Milling vice 160mm
250200: Milling vice 200mm
260160: Rotary table 160 mm
260200: Rotary table 200mm
270014: 16 mm T slotted, M14 mold set
Coolant Pump Power - 1/8 Hp (100 W) W
Table Size - 1370x254 mm
T-slot Size - 3x16 mm
Spindle Speed - 70-3600 rpm
Number of Steps - 8
Spindle Diameter - 100 mm
Quill Travel - 127 mm
Spindle Feed - 0.04-0.08-0.15 mm/rev
Headstock Rotation - ±90°
Spindle-Table Distance - 40-446 mm
Spindle-Column Distance - 200-680 mm
RAM Travel - 480 mm
Machine Size - 1750x1500x2200 mm
Net Weight - 1300 Kg
