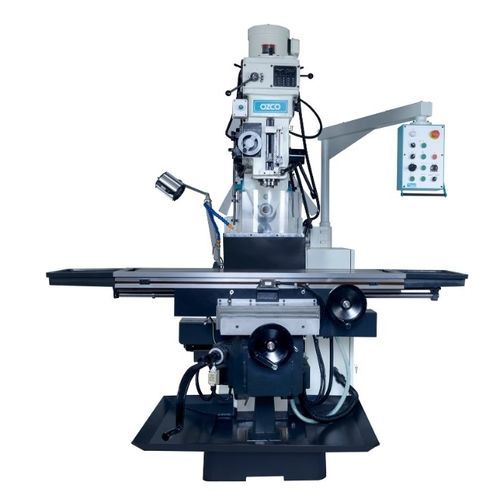

3-axis milling machine FR7 Prouniversalservo-drivenautomatic
Add to favorites
Compare this product
Characteristics
- Number of axes
- 3-axis
- Spindle orientation
- universal
- Drive system
- servo-driven
- Other characteristics
- automatic, CE
- X travel
1,120 mm
(44.09 in)- Y travel
500 mm
(19.69 in)- Z travel
440 mm
(17.32 in)- Power
3.75 kW
(5.1 hp)
Description
• X and Y axes ball screw, Japanese origin
• Z axis rapid motor-auto
• Height adjustable chuck guard with safety switch
• Schneider electrical system
• Turcite-B coated skids
• Lighting
• Cooling system
• Chip tank
• Mold set
• Clamping tools
• Milling (collet) chuck set 11-part ISO 40
• Operating tools
270016: 18 mm T slotted, M16 mold set
Table Size - 1470x300 mm
Table Load Capacity(Max.) - 400 Kg
T-slot Size - 3x18 mm
Spindle Taper - Vertical:ISO40, Horizontal:ISO40
Spindle Speed - Vertical:62-3000 rpm, ,Horizontal:60-1440 rpm rpm
Number of Steps - Vertical:16, Horizontal:9
Quill Travel - 140 mm
Headstock Rotation - ±45°
Spindle-Table Distance - Vertical:85-505 mm, Horizontal:25-395 mm
Table Feed - X,Y: 750 W servo motor, Z:750 W rapid motor
Machine Size - 2070x2050x2600 mm
Net Weight - 2600 Kg
