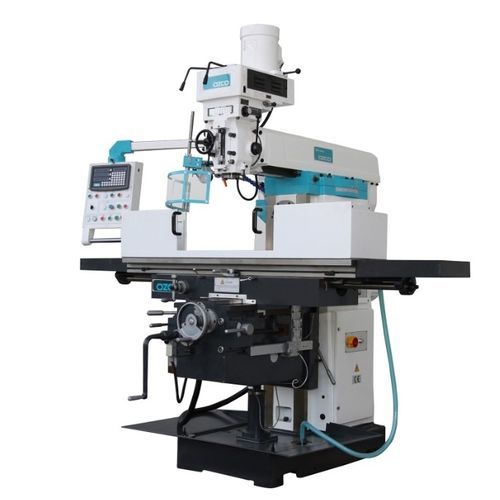

3-axis milling machine FR6 ServouniversalautomaticCE
Add to favorites
Compare this product
Characteristics
- Number of axes
- 3-axis
- Spindle orientation
- universal
- Other characteristics
- automatic, CE
- X travel
1,300 mm
(51.18 in)- Y travel
300 mm
(11.81 in)- Z travel
400 mm
(15.75 in)- Power
5.5 kW
(7.48 hp)
Description
• Height-adjustable protective screen with micro switch (Height-adjustable protection guard with (safety) switch)
• Taiwan powerful milling head
• Control Panel
• Automatic Lubrication System
• Cooling system
• Machine lamp
• Chip tray
• Mold set
• Clamping tools
• Milling (collet) chuck set
11-part ISO 40
210106: ISO40-B16 morse taper
210206: ISO40-ER40 collet set, 15 pcs
220404: ISO40-MT4 reduction sleeve
250160: Milling vice 160mm
250200: Milling vice 200mm
260160: Rotary table 160 mm
260200: Rotary table 200mm
270016: 18 mm T slotted, M16 mold set
Coolant Pump Power - 90 W
Table Size - 1600x360 mm
Table Load Capacity(Max.) - 400 Kg
T-slot Size - 3x18 mm
Spindle Taper - Vertical: ISO40, Horizontal: ISO50
Spindle Speed - Vertical:60-3600 rpm, Horizontal:60-1800 rpm rpm
Number of Steps - Vertical:12, Horizontal:12
Quill Travel - 127 mm
Headstock Rotation - ±90°
Spindle-Table Distance - Vertical:200-650 mm, Horizontal:20-470 mm mm
Table Feed - X:30-750 mm/dak, Y:20-500 mm/dak, Z:15-371 mm/dak
EN - Tabla Seri Besleme - X:1200 mm/dak, Y:800 mm/dak, Z:600 mm/dak
RAM Travel - 550 mm
Table Feed Motor - 15 N.m (Servo)
Machine Size - 2500x2100x2500 mm
Net Weight - 2850 Kg
