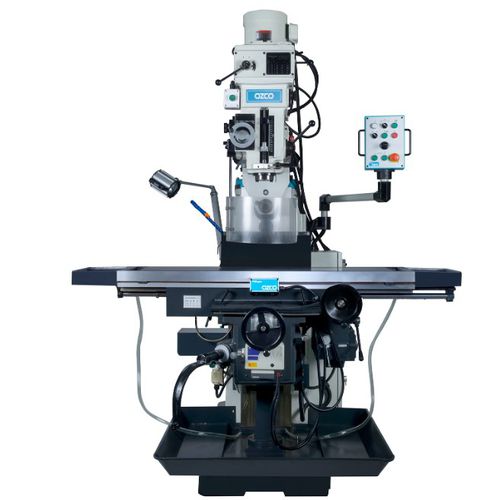

3-axis milling machine FR5 Pro

universalautomaticCE

• X-axis Automatic Geared Power Feed with Ball Screw Drive • Y-axis YASKAWA inverter motor with Ball Screw Drive • Z-axis Rapid Feed Motor – Automatic • Height-adjustable protective screen with micro switch (Height-adjustable protection guard with (safety) switch) • Schneider electric system • Turcite-B coated Slideways • Cooling system • Machine lamp • Chip tray • Milling (collet) chuck set 15-part ISO 40 • Mold set • Milling vice • Operating tools 210106: ISO40-B16 morse taper 210206: ISO40-ER40 collet set, 15 pcs 220404: ISO40-MT4 reduction sleeve 250160: Milling vice 160mm 250200: Milling vice 200mm 260160: Rotary table 160 mm 260200: Rotary table 200mm 270014: 16 mm T slotted, M14 mold set Coolant Pump Power - 1/8 Hp (100 W) W Table Size - 1470x300 mm mm Table Load Capacity(Max.) - 300 Kg T-slot Size - 3x16 mm Spindle Taper - Dikey: ISO 40, Yatay: 40 Spindle Speed - Vertical:75-3600 rpm, Horizontal:65-1500 rpm rpm Number of Steps - Vertical:16, Horizontal:9 Spindle Diameter - 110 mm Quill Travel - 140 mm Spindle Feed - 0.04-0.08-0.15 mm/dev mm/rev Headstock Rotation - ±90° Spindle-Table Distance - 95-545 mm Spindle-Column Distance - 190-690 mm Table Feed - X:3/4 Hp, Y,Z: 1/2 Hp RAM Travel - 500 mm Machine Size - 1750x1620x2350 mm Net Weight - 2350 Kg
