3-axis milling machine FR5 Servo
universalCE

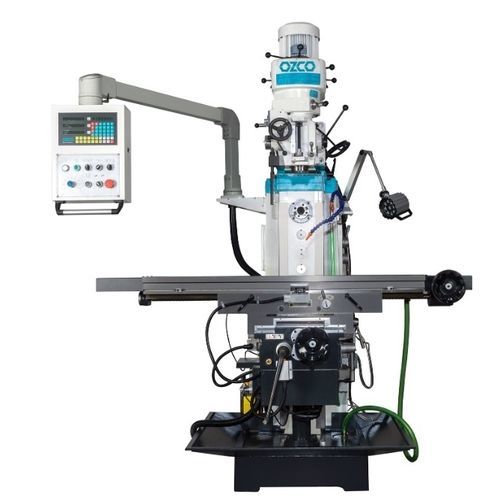

3-axis milling machine - FR5 Servo - Ozco Metalworking Machines - universal / CE
3-axis milling machine - FR5 Servo - Ozco Metalworking Machines - universal / CE
3-axis milling machine - FR5 Servo - Ozco Metalworking Machines - universal / CE - image - 2
3-axis milling machine - FR5 Servo - Ozco Metalworking Machines - universal / CE - image - 3
Add to favorites
Compare this product


Characteristics

Number of axes
3-axis
Spindle orientation
universal
Other characteristics
CE
X travel

1,000 mm
(39.37 in)

Y travel

360 mm
(14.17 in)

Z travel

400 mm
(15.75 in)

Power

3 kW, 3.75 kW
(4.08 hp, 5.1 hp)

Description

• Taiwan powerful milling head • Height-adjustable protective screen with micro switch (Height-adjustable protection guard with (safety) switch) • Control panel • Automatic lubrication system • Cooling system • Machine lamp • Chip tray • Mold set • Clamping tools • Milling (collet) chuck set 11-part ISO 40 • Operating tools 210106: ISO40-B16 morse taper 210206: ISO40-ER40 collet set, 15 pcs 220404: ISO40-MT4 reduction sleeve 250160: Milling vice 160mm 250200: Milling vice 200mm 260160: Rotary table 160 mm 260200: Rotary table 200mm 270014: 16 mm T slotted, M14 mold set Coolant Pump Power - 90 W Table Size - 1370x320 mm Table Load Capacity(Max.) - 300 kg Kg T-slot Size - 3x14 mm Spindle Taper - Vertical:ISO40, Horizontal:ISO40 Spindle Speed - Vertical:65-4660 rpm, Horizontal:35-1500 rpm rpm Number of Steps - Vertical: 16, Horizontal: 12 Spindle Diameter - 105 mm Quill Travel - 127 mm Spindle Feed - 0.03-0.08-0.2 mm/rev Spindle-Table Distance - Vertical:200-600 mm, Horizontal:35-435 mm mm Headstock Rotation - ±90° Spindle-Column Distance - 200 mm Table Feed - X,Y: 30-830 mm/dak, Z:23-625 mm/dak EN - Tabla Seri Besleme - X,Y: 1335 mm/dak, Z: 1000 mm/dak Table Feed Motor - 10 N.m (Servo) RAM Travel - 450 mm Machine Size - 1820x1680x2350 mm Net Weight - 1800 Kg
