3-axis milling machine FX200 Servo
universalautomaticCE

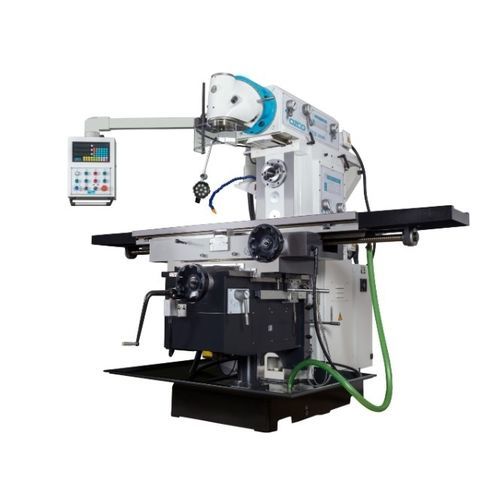

3-axis milling machine - FX200 Servo - Ozco Metalworking Machines - universal / automatic / CE
3-axis milling machine - FX200 Servo - Ozco Metalworking Machines - universal / automatic / CE
3-axis milling machine - FX200 Servo - Ozco Metalworking Machines - universal / automatic / CE - image - 2
Add to favorites
Compare this product

Go to the Ozco Metalworking Machines website for more information

Characteristics

Number of axes
3-axis
Spindle orientation
universal
Other characteristics
automatic, CE
X travel

1,300 mm
(51.18 in)

Y travel

300 mm
(11.81 in)

Z travel

400 mm
(15.75 in)

Power

4 kW, 5.5 kW
(5.44 hp, 7.48 hp)

Description

• Height-adjustable protective screen with micro switch (Heightadjustable protection guard with (safety) switch) • Control Panel • Automatic Lubrication System • Cooling system • Machine lamp • Chip tray • Mold set • Clamping tools • M24 Shaft puller • Milling (collet) chuck set 8-part ISO 50 • ISO 50-27 mandrel • ISO 50-32 mandrel • Operating tools 210107: ISO50-B16 morse taper 210207: ISO40-ER40 collet set, 15 pcs 250160: Milling vice 160mm 250200: Milling vice 200mm 260160: Rotary table 160 mm 270014: 16 mm T slotted, M14 mold set
