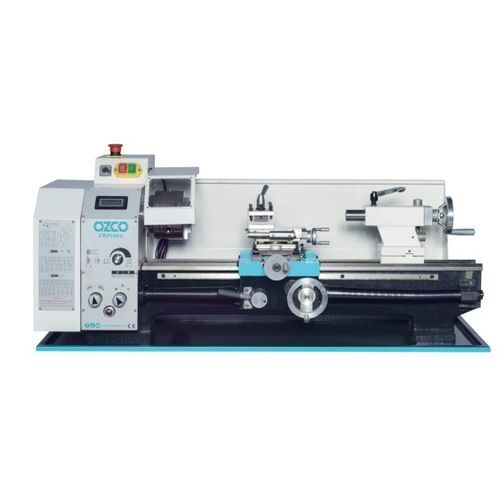

Conventional lathe CR2555V horizontalpowerfulprecision
Add to favorites
Compare this product
Characteristics
- Control type
- conventional
- Spindle orientation
- horizontal
- Performance
- powerful, precision
- Diameter
250 mm
(9.84 in)- Spindle speed
Max.: 2,000 rpm
(12,566.371 rad.min-1)Min.: 125 rpm
(785.398 rad.min-1)- Nominal power
1.1 kW
(1.5 hp)- Overall lenght
1,250 mm
(49 in)- Overall width
585 mm
(23 in)- Overall height
475 mm
(19 in)- Weight
125 kg
(276 lb)
Description
• Hardened and polished guideways
• Right / Left Rotation
• Automatic Carriage
• Threading Mode
• Splashguard (Rear Safety Guard)
• Emergency Stop Button
• Chip tray
• CE Standard
• 3 jaw lathe chuck Ø125 mm
• Fixed Center
• Travelling Center
• Change Gear Wheels for Thread Cutting (Replaceable Gear Set)
• Splashguard (Rear Safety Guard)
• Chip tray
• Operating Tools
395055: Stand
310102: MT2 Live center
320102: 20X90mm Quick change tool holder set
Bed Width - 135 mm
Center Width - 550 mm
Number of Steps - Varyatörlü
Spindle Taper - MK4
Spindle Bore - 26 mm
Compound Rest Travel - 70 mm
Cross Slide Travel - 110 mm
Tailstock Spindle (Taper) - MK2
Tailstock Sleeve Stroke - 65 mm
Longitudinal Feed - 0.07-0.4 mm/rev
Pitch–Metric - 0.2-0.4 mm
Pitch–Inches - 8-56
Tool Holder - 12 mm
