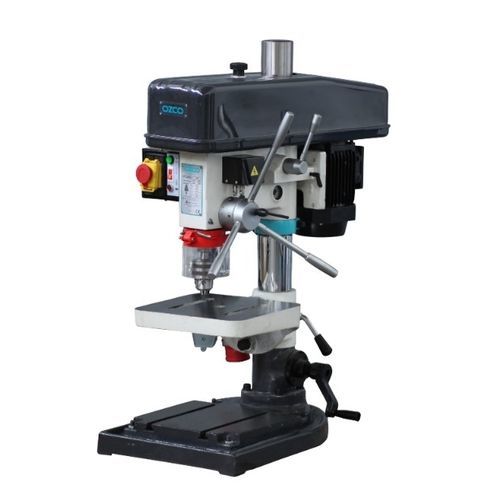

Vertical drilling and tapping machine M16TP electricM16belt-driven
Add to favorites
Compare this product
Characteristics
- Structure
- vertical
- Other characteristics
- electric, M16, belt-driven
- Drilling diameter
16 mm
(0.63 in)- Power
780 W
- Rotational speed
Max.: 4,100 rpm
(25,761.1 rad.min-1)Min.: 480 rpm
(3,015.9 rad.min-1)- Weight
90 kg
(198 lb)
Description
Standard Accessories (What is Included):
• MT2-B18 morse taper
• MT3-B18 morse taper (M25TP)
• 0-16 mm B18 chuck
• Foot control pedal for tapping operation
Tapping Capacity - M12
Spindle Taper - MK2
Spindle Stroke (Spindle Travel) - 100 mm
Spindle-Column Distance - 193 mm
Spindle-Table Distance - 297 mm
Spindle to Base Distance - 556 mm
Column Diameter - 70 mm
Number of Steps - 5
Table Size - 200x230 mm
Base Size - 528x360 mm
Dimensions (L x W x H) - 770x420x950 mm
