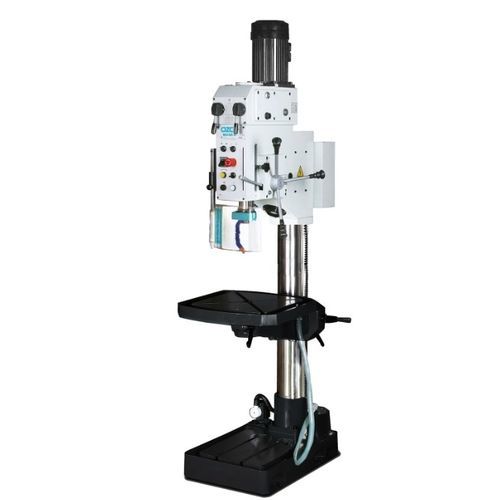

Vertical drilling machine MC35S
electric

Vertical drilling machine - MC35S - Ozco Metalworking Machines - electric
Vertical drilling machine - MC35S - Ozco Metalworking Machines - electric
Vertical drilling machine - MC35S - Ozco Metalworking Machines - electric - image - 2
Add to favorites
Compare this product

Go to the Ozco Metalworking Machines website for more information

Characteristics

Structure
vertical
Other characteristics
electric
Drilling diameter

35 mm
(1.38 in)

Power

1,500 W

Rotational speed

Min.: 50 rpm
(314.2 rad.min-1)

Max.: 1,450 rpm
(9,110.6 rad.min-1)

Weight

500 kg
(1,102 lb)

Description

• Electromagnetic automatic feed • Height-adjustable chuck cover • Digital depth reader • Threading mode • 360° rotatable worktable • Machine lamp • Cooling system • CE Standard • Spindle feed with mechanical clutch Working Type - Geared Tapping Capacity - M24 Spindle Taper - MK4 Spindle Stroke (Spindle Travel) - 180 mm Spindle-Column Distance - 350 mm Spindle-Table Distance - 780 mm Spindle to Base Distance - 1320 mm Column Diameter - 150 mm Number of Steps - 18 Table Size - 560x560 mm Base Size - 730x500 mm Spindle Feed - 0,1-0,2 mm/dev Coolant Pump Power - 60 W Coolant Pump Tank Capacity - 5 Machine Size - 935x560x2280 mm Dimensions (L x W x H) - 1130x700x2480 mm
