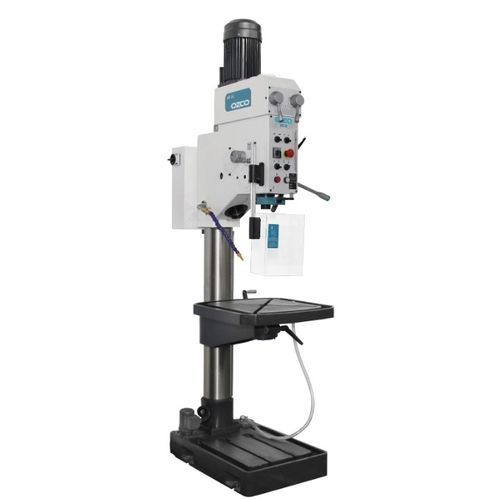

Vertical drilling machine MC35
electric

vertical drilling machine
vertical drilling machine
vertical drilling machine
vertical drilling machine
vertical drilling machine
Add to favorites
Compare this product

Go to the Ozco Metalworking Machines website for more information

Characteristics

Structure
vertical
Other characteristics
electric
Drilling diameter

35 mm
(1.38 in)

Power

1,500 W

Rotational speed

Min.: 50 rpm
(314.2 rad.min-1)

Max.: 1,450 rpm
(9,110.6 rad.min-1)

Weight

500 kg
(1,102 lb)

Description

• Spindle feed with electromagnetic clutch • Digital depth indicator • ±45° right and left rotating table Working Type - Geared Tapping Capacity - M24 Spindle Taper - MK4 Spindle Stroke (Spindle Travel) - 180 mm Spindle-Column Distance - 350 mm Spindle-Table Distance - 780 mm Spindle to Base Distance - 1320 mm Column Diameter - 150 mm Number of Steps - 18 Table Size - 560x560 mm Base Size - 730x500 mm Spindle Feed - 0,1-0,2 Coolant Pump Power - 60 W Coolant Pump Tank Capacity - 5 Machine Size - 935x560x2280 mm Dimensions (L x W x H) - 1130x700x2480 mm
