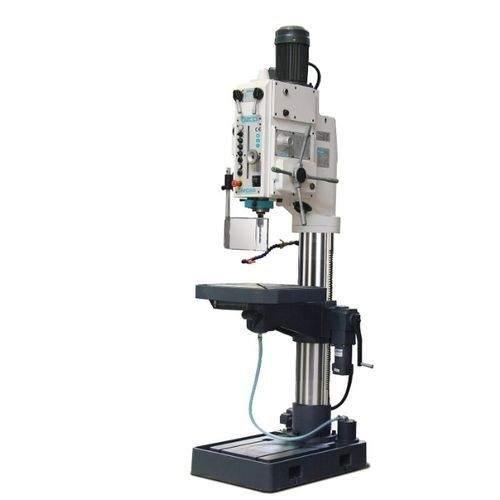

Vertical drilling machine MC50 column typeelectricmagnetic
Add to favorites
Compare this product
Characteristics
- Structure
- vertical, column type
- Other characteristics
- electric, magnetic, heavy-duty
- Drilling diameter
50 mm
(1.97 in)- Power
3,000 W
- Rotational speed
Min.: 54 rpm
(339.3 rad.min-1)Max.: 2,090 rpm
(13,131.9 rad.min-1)- Weight
900 kg
(1,984 lb)
Description
• 200 mm column diameter
• Height-adjustable chuck cover
• Digital depth reader
• Threading mode
• Motorized table stroke
• Machine lamp
• Cooling system
• CE Standard
Standard Accessories
• MT4-B16 morse taper
• 3-16mm B16 drill chuck
• Operating tools
Working Type - Geared
Tapping Capacity - M42
Spindle Taper - MK4
Spindle Stroke (Spindle Travel) - 230 mm
Spindle-Column Distance - 375 mm
Spindle-Table Distance - 800 mm
Spindle to Base Distance - 1300 mm
Column Diameter - 200 mm
Number of Steps - 18
Table Size - 600x600 mm
Base Size - 600x860 mm
Spindle Feed - 0.05-0.3 (6 kademe)
Coolant Pump Power - 40 W
Coolant Pump Tank Capacity - 5
Machine Size - 1016x610x2454 mm
Dimensions (L x W x H) - 2580x750x1135 mm
