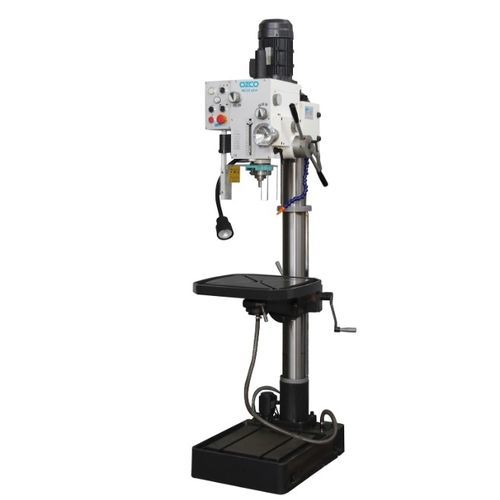

Vertical drilling machine MC32 Pluselectric
Add to favorites
Compare this product
Characteristics
- Structure
- vertical
- Other characteristics
- electric
- Drilling diameter
32 mm
(1.26 in)- Power
1,500 W
- Rotational speed
Max.: 1,600 rpm
(10,053.1 rad.min-1)Min.: 75 rpm
(471.2 rad.min-1)- Weight
335 kg
(739 lb)
Description
• Automatic spindle feed
• Threading mode
• Height-adjustable chuck
cover with safety switch
• Lighting system
• Cooling unit
• CE standard
Working Type - Geared
Tapping Capacity - M20
Spindle Taper - MK4
Spindle Stroke (Spindle Travel) - 120 mm
Spindle-Column Distance - 298 mm
Spindle-Table Distance - 610 mm
Spindle to Base Distance - 1180 mm
Column Diameter - 115 mm
Number of Steps - 6
Table Size - 560x460 mm
Spindle Feed - 0,10,0,18,0,26
Machine Size - 935x560x2280 mm
Dimensions (L x W x H) - 700x720x2050 mm
Coolant Pump Power - 40 W
