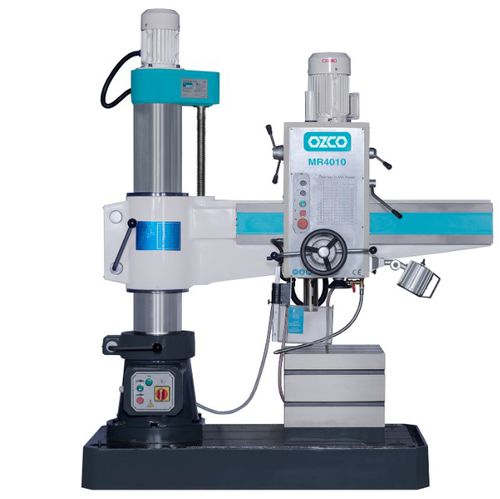

Vertical drilling machine MR4010 radialelectric
Add to favorites
Compare this product
Characteristics
- Structure
- vertical, radial
- Other characteristics
- electric
- Drilling diameter
40 mm
(1.57 in)- Power
1,500 W
- Rotational speed
Min.: 75 rpm
(471.2 rad.min-1)Max.: 1,220 rpm
(7,665.5 rad.min-1)- Weight
1,200 kg, 1,300 kg
(2,646 lb, 2,866 lb)
Description
• Box-type worktable
• Cooling system
• Automatic lubrication system
• CE Standard
Standard Accessories
• Morse taper sleeves
• Operating tools
EN - Kavrama Tipi - Mekanik
Working Type - Geared
Coolant Pump Power - 90 W
Spindle Taper - MK4
Spindle Stroke (Spindle Travel) - 240 mm
Spindle-Column Distance - 320-1020 mm
Spindle-Table Distance - 120-860 mm
Column Diameter - 200 mm
Number of Steps - 6
Table Size - 400x400x350 mm
Spindle Feed - 0,1-0,25 mm/dev (3 kademe)
Machine Size - 1600x720x1885 mm
Dimensions (L x W x H) - 1750x770x2100 mm
