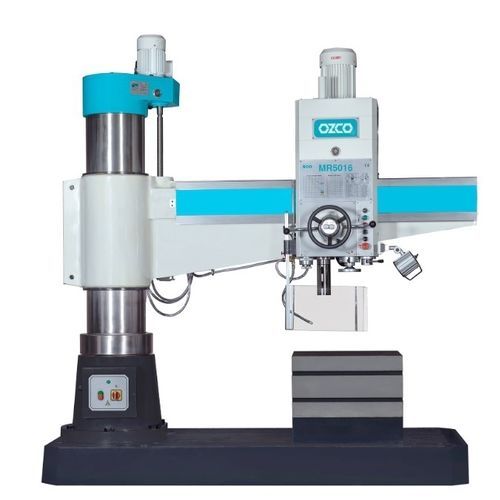

Vertical drilling machine MR5016 radialelectric
Add to favorites
Compare this product
Characteristics
- Structure
- vertical, radial
- Other characteristics
- electric
- Drilling diameter
50 mm
(1.97 in)- Power
4,000 W
- Rotational speed
Max.: 2,000 rpm
(12,566.4 rad.min-1)Min.: 25 rpm
(157.1 rad.min-1)- Weight
3,500 kg, 3,700 kg
(7,716 lb, 8,157 lb)
Description
• Box-type worktable
• Cooling system
• Automatic lubrication system
• CE Standard
Standard Accessories
• Morse taper sleeves
• Operating tools
N - Kavrama Tipi - Hydraulic
Working Type - Geared
Coolant Pump Power - 90 W
Spindle Taper - MK5
Spindle Stroke (Spindle Travel) - 315 mm
Spindle-Column Distance - 350-1600 mm
Spindle-Table Distance - 320-1220 mm
Column Diameter - 350 mm
Number of Steps - 16
Table Size - 630x500x500 mm
Spindle Feed - 0,04-3,2 mm/dev (16 kademe)
Machine Size - 2500x1070x2840 mm
Dimensions (L x W x H) - 2580x1140x2550 mm
