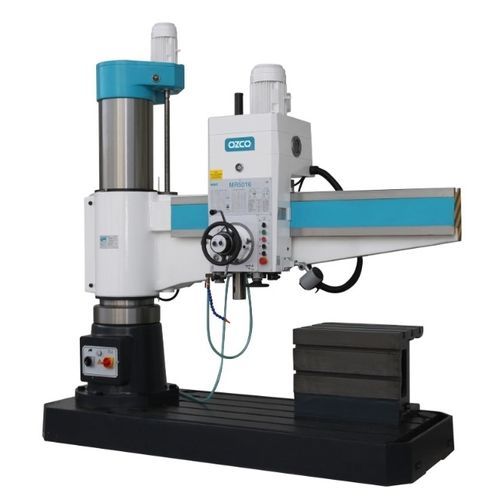

Vertical drilling machine MR6320
radialelectric

vertical drilling machine
vertical drilling machine
Add to favorites
Compare this product

Go to the Ozco Metalworking Machines website for more information

Characteristics

Structure
vertical, radial
Other characteristics
electric
Drilling diameter

63 mm
(2.48 in)

Power

5,500 W

Rotational speed

Max.: 1,600 rpm
(10,053.1 rad.min-1)

Min.: 20 rpm
(125.7 rad.min-1)

Weight

6,800 kg, 7,150 kg
(14,991 lb, 15,763 lb)

Description

• Box-type worktable • Cooling system • Automatic lubrication system • CE Standard Standard Accessories • Morse taper sleeves • Operating tools EN - Kavrama Tipi - Hydraulic Working Type - Geared Coolant Pump Power - 90 W Spindle Taper - MK5 Spindle Stroke (Spindle Travel) - 400 mm Spindle-Column Distance - 450-2050 mm Spindle-Table Distance - 400-1600 mm Column Diameter - 450 mm Number of Steps - 16 Table Size - 950x630x500 mm Spindle Feed - 0,04-3,2mm/dev (16 kademe) Machine Size - 2900x1250x2500 mm Dimensions (L x W x H) - 3110x1250x3150 mm
