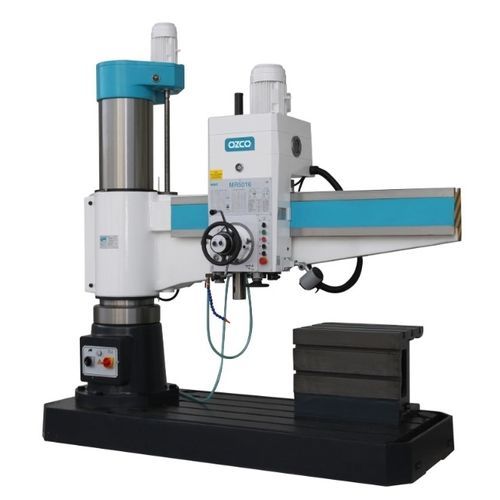

Vertical drilling machine MR8025
radialelectric

vertical drilling machine
vertical drilling machine
Add to favorites
Compare this product

Go to the Ozco Metalworking Machines website for more information

Characteristics

Structure
vertical, radial
Other characteristics
electric
Drilling diameter

80 mm
(3.15 in)

Power

7,500 W

Rotational speed

Min.: 16 rpm
(100.5 rad.min-1)

Max.: 1,250 rpm
(7,854 rad.min-1)

Weight

11,000 kg, 11,500 kg
(24,251 lb, 25,353 lb)

Description

• Box-type worktable • Cooling system • Automatic lubrication system • CE Standard Standard Accessories • Morse taper sleeves • Operating tools EN - Kavrama Tipi - Hydraulic Working Type - Geared Coolant Pump Power - 90 W Spindle Taper - MK6 Spindle Stroke (Spindle Travel) - 450 mm Spindle-Column Distance - 500-2500 mm Spindle-Table Distance - 550-2000 mm Column Diameter - 550 mm Number of Steps - 16 Table Size - 1000x800x560 mm Spindle Feed - 0,04-3,2 mm/dev (16 kademe) Machine Size - 3750x1400x4025 mm Dimensions (L x W x H) - 3850x1480x4100 mm
