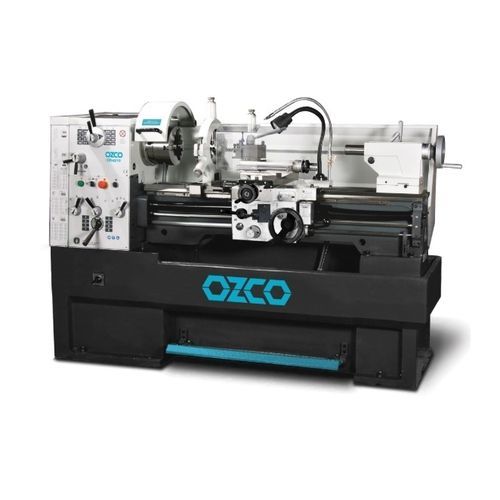

Conventional lathe CR4210

horizontalrigid

• Hardened and grinded z-axis guideway • Heavy-duty and rigid cast iron machine bed • Safety Guard for Lathe Chuck with micro switch • Emergency Stop Button • Siemens Electrical System • Lathe Foot Brake • Protective Chuck and Tooth Holder Shields • Coolant System • CE Standard • 3 jaw lathe chuck – Ø200 mm • 4 jaw lathe chuck – Ø250 mm • Face plate – Ø350 mm • Steady Rest • Follow Rest • MK4 live center • MK4 dead center • MK5/MT3 Reduction Sleeves • Thread Gauge • Quadruple tool holder • Halogen machine lamp • Quadruple tool holder • Replaceable Gear Set • Operating Tools 310104: MT4 Live center 320104: 25X120mm Quick change tool holder set Bed Width - 250 mm Center Width - 1000 mm Number of Steps - 18 Spindle Taper - MK6 Spindle Bore - 52 mm Compound Rest Travel - 140 mm Cross Slide Travel - 230 mm Tailstock Spindle (Taper) - MK4 Tailstock Sleeve Stroke - 120 mm Longitudinal Feed - 0,05-1,7 mm/rev Cross Feed - 0,025-0,85 mm/rev Pitch–Metric - 0,2-14 mm Pitch–Inches - 2-72 Tool Holder - 20x20 mm
