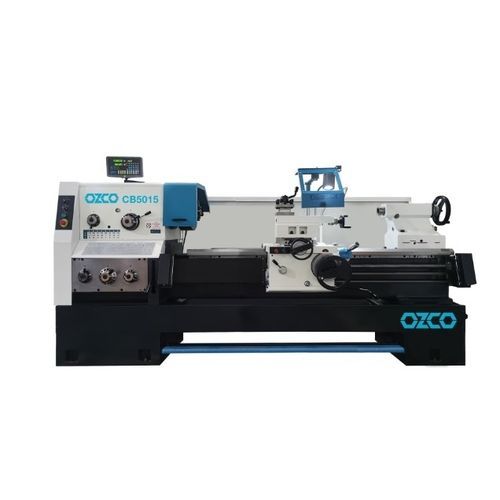

Conventional lathe CB5015

horizontalrigidD1-8

• Hardened and grinded z-axis guideway • Mechanical clutch system • Chuck guard with safety switch • Heavy-duty and rigid cast iron machine bed • Equipped with joystick featuring practical easy use • Machine lamp • Lathe Foot Brake • Coolant System • CE Standard Standard Accessories • 3 jaw lathe chuck Ø315 mm • 4 jaw lathe chuck Ø400 mm • Face plate Ø480 mm • Steady Rest • Follow Rest • MK5 live center • MK6 dead center • Thread Gauge • Quadruple tool holder • Machine lamp • Protective Chuck and Tool Holder Shields • Coolant System • Operating Tools Bed Width - 390 mm Bed Length - 240 Center Width - 1500 mm Maximum Loading Capacity - Ayna ile 300 kg, Ayna+Gezer Punta ile 400 kg Number of Steps - 16 Spindle Taper - MK6 Spindle Bore - 82 mm Compound Rest Travel - 320 mm Cross Slide Travel - 145 mm Tailstock Spindle (Taper) - MK5 Tailstock Spindle Diameter - 75 mm Tailstock Sleeve Stroke - 150 mm Longitudinal Feed - 0,012-2,73 mm/rev Cross Feed - 0,028-6,43 mm/rev Pitch–Metric - 0,5-224 (48 piece) mm Pitch–Inches - 72/1-8 TPI (46 piece) Modular Thread Range - 0,5-112 (42 piece) Diametral Pitch Range - 56-1/4 DP (45 piece) Tool Holder - 25x25 mm
