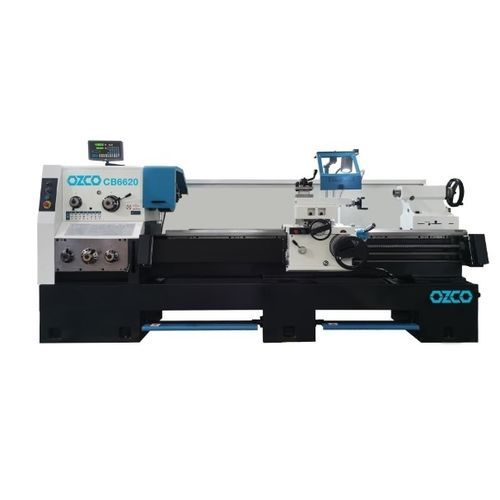

Conventional lathe CB6620

horizontalrigidD1-8

• Mechanical clutch system • Chuck guard with safety switch • Heavy-duty and rigid cast iron machine bed • Equipped with joystick featuring practical easy use • Machine lamp • Lathe Foot Brake • Coolant System • CE Standard Standard Accessories • 3 jaw lathe chuck Ø315 mm • 4 jaw lathe chuck Ø315 mm • Face plate – Ø480 mm • Steady Rest • Follow Rest • Live center • Dead center • Thread Gauge • Quadruple tool holder • Machine lamp • Protective Chuck and Tool Holder Shields • Coolant System • Operating Tools Center Width - 2000 mm Maximum Loading Capacity - Ayna ile 350 kg, Ayna+Gezer Punta ile 450 kg Number of Steps - 12 Spindle Taper - MK7 Spindle Bore - 105 mm Compound Rest Travel - 310 mm Cross Slide Travel - 145 mm Tailstock Spindle (Taper) - MK5 Tailstock Spindle Diameter - 75 mm Tailstock Sleeve Stroke - 150 mm Longitudinal Feed - 0.027-1.07 mm/rev Cross Feed - 0.063-2.52 mm/rev Pitch–Metric - 1-14 mm (25 piece) mm Pitch–Inches - 28-2 TPI (25 piece) Modular Thread Range - 0.5-7 (18 piece) Diametral Pitch Range - 56-4 DP (24 piece) Tool Holder - 25x25 mm
