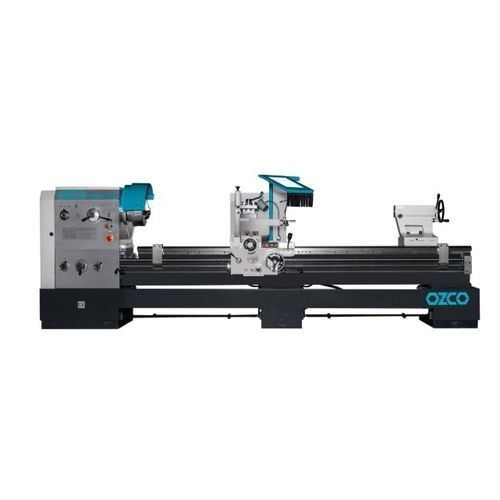

Conventional lathe CB8030
horizontalD1-8

conventional lathe
conventional lathe
conventional lathe
conventional lathe
conventional lathe
conventional lathe
conventional lathe
Add to favorites
Compare this product


Characteristics

Control type
conventional
Spindle orientation
horizontal
Spindle mount
D1-8
Diameter

560 mm, 800 mm, 1,000 mm
(22.05 in, 31.5 in, 39.37 in)

Spindle speed

Max.: 1,400 rpm
(8,796.459 rad.min-1)

Min.: 30 rpm
(188.496 rad.min-1)

Nominal power

7.5 kW
(10.2 hp)

Overall lenght

4,370 mm
(172 in)

Overall width

1,350 mm
(53 in)

Overall height

1,500 mm
(59 in)

Weight

3,750 kg
(8,267 lb)

Description

• Mechanical clutch system • Chuck guard with safety switch • Heavy-duty and rigid cast iron machine bed • Equipped with joystick featuring practical easy use • Machine lamp • Lathe Foot Brake • Coolant System • CE Standard Standard Accessories • 3 jaw lathe chuck Ø315 mm • 4 jaw lathe chuck Ø315 mm • Face plate – Ø480 mm • Steady Rest • Follow Rest • Live center • Dead center • Thread Gauge • Quadruple tool holder • Machine lamp • Protective Chuck and Tool Holder Shields • Coolant System • Operating Tools Bed Width - 510 mm Center Width - 3000 mm Number of Steps - 12 Spindle Taper - MK7 Spindle Bore - 105 mm Compound Rest Travel - 320 mm Cross Slide Travel - 145 mm Tailstock Spindle (Taper) - MK5 Tailstock Spindle Diameter - 75 mm Tailstock Sleeve Stroke - 150 mm Longitudinal Feed - 0.027-1.07 mm/rev Compound Rest Travel - 0.063-2,52 mm Pitch–Metric - 1-14 mm (22 piece) mm Pitch–Inches - 20-2 TPI (20 piece) Modular Thread Range - 0.5-7 (18 piece) Diametral Pitch Range - 56-4 DP (24 piece) Tool Holder - 25x25 mm
