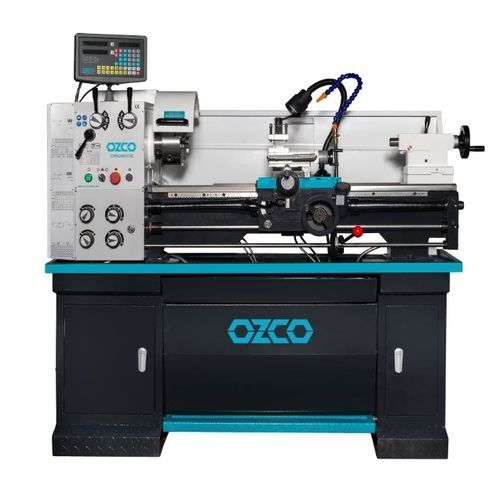

Conventional lathe CR3610 Dk

horizontal

• Hardened and grinded z-axis guideway • 52 mm spindle • Safety Guard for Lathe Chuck with micro switch • Emergency Stop Button • Siemens Electrical System • Lathe Foot Brake • Protective Chuck and Tool Holder Shields • Coolant System • CE Standard • 3 jaw lathe chuck – Ø200 mm • 4 jaw lathe chuck – Ø200 mm • Face plate – Ø250 mm • Steady Rest • Follow Rest • MT3 live center • MT3 dead center • MK5/MT3 Reduction Sleeves • Thread Gauge • Quadruple tool holder • Halogen machine lamp • Quadruple tool holder • Replaceable Gear Set • Operating Tools 310103: MT3 Live center 320103: 20X100mm Quick change tool holder set Bed Width - 187 mm Center Width - 1000 mm Number of Steps - 8 Spindle Taper - MK6 Spindle Holder - D2-5 Spindle Bore - 52 mm Compound Rest Travel - 130 mm Cross Slide Travel - 160 mm Tailstock Spindle (Taper) - MK3 Tailstock Sleeve Stroke - 120 mm Longitudinal Feed - 0.052-1.392 mm/rev Cross Feed - 0,014-0,380 mm/rev Pitch–Metric - 0,4-7 mm Pitch–Inches - 16x16
