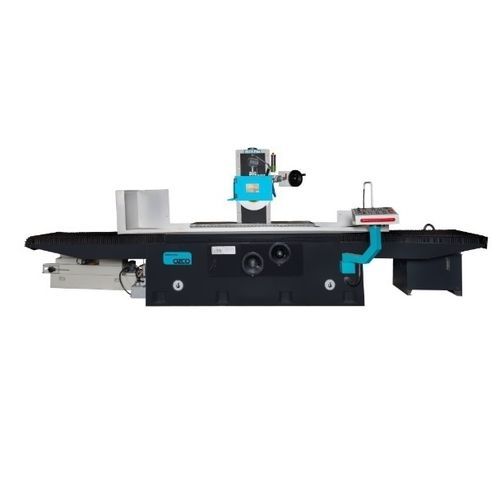

Surface grinding machine SG515 Servoworkpieceautomatichydraulic
Add to favorites
Compare this product
Characteristics
- Type
- surface
- Applications
- workpiece
- Control type
- automatic
- Other characteristics
- stationary, hydraulic
- Spindle speed
1,450 rpm
(9,111 rad.min-1)- Power
7.5 kW
(10.2 hp)- Distance between centers
590 mm
(23 in)- X travel
1,600 mm
(62.99 in)- Y travel
540 mm
(21.26 in)
Description
• Grinding wheel
• Grinding wheel flange
• Balancing stand
• Balancing shaft (arbor)
• Wheel dresser (diamond dresser)
• Anchor bolt
• Hydraulic oil tank
• Magnetic separator
• Magnetic table
• Cooling system
• Machine lamp
• Pads
• Operating Tools
Table Dimensions - 500x1500 mm
Table Load Capacity(Max.) - 700 Kg
T Channel Dimensions - 3x16 mm
Table Moving Speed - 5~25 m/min
Y Axis Handwheel Feed Line - 0,02 mm
Y Axis Handwheel One Turn - 5 mm
Automatic Y-axis Movement - 0,5~12 mm
Y-axis Rapid Speed - 1250 mm/min
Stone Dimensions, Diameter x Width x Hole Diameter - 355x40x127 mm
Z Axis Handwheel Feed Line - 0,002 mm
Z Axis Handwheel One Turn - 0,5 mm
Automatic down feed precision (rate) - 0,005~0,04
Z-axis feeding speed - 230 mm/min
Hydraulic Motor Power - 2,2 Kw
Dust Collection Motor Power - 500 W
Cooling Engine Power - 90 W
Y-axis (Vertical) Motor Capacity - 370 W
Z-axis (Cross feed) Motor Capacity - 370 W
Verge Dimensions - 3890x2255x2225 mm
Net Weight - 6000 Kg
Gross Weight - 7000 Kg
Dimensions (L x W x H) - 3890x2255x2255 mm
