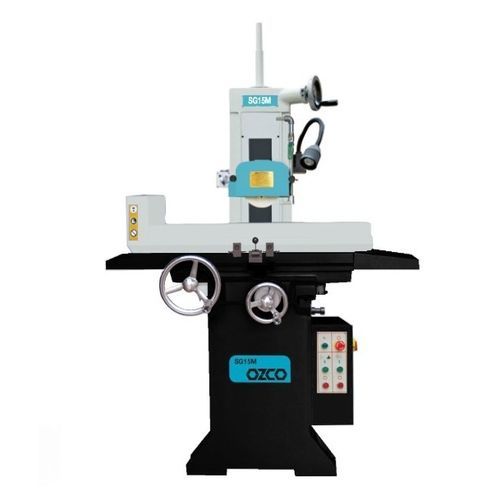

Surface grinding machine SG15M workpieceautomaticconventional
Add to favorites
Compare this product
Characteristics
- Type
- surface
- Applications
- workpiece
- Control type
- automatic, conventional
- Other characteristics
- high-precision
- Spindle speed
2,850 rpm
(17,907 rad.min-1)- Power
1.1 kW
(1.5 hp)- Distance between centers
360 mm
(14 in)- X travel
480 mm
(18.9 in)- Y travel
165 mm
(6.5 in)
Description
• Strong cast body, rigid structure
• Hardened and ground table slides
• Slideways laminated with Teflon
• Centralized automatic lubrication system
• Organized and easily accessible electrical panel
• Adjustable magnetic power
• Safe control panel working with 24V voltage
• CE Standards
Machine Structure
• Spindle motor: ABB brand
bearing with P4 grade
• Electrical System: SIEMENS
Standard Accessories
• Grinding Wheel
• Wheel Flange
• Wheel balancing arbor
• Overhead parallel dresser
• Magnetic table
• Cooling tank
• Lighting
• Operating Tools
Table Dimensions - 150x450 mm
Table Load Capacity(Max.) - 100 Kg
T Channel Dimensions - 1x4 mm
Table Moving Speed - Manual
Y Axis Handwheel Feed Line - 0,01 mm
Y Axis Handwheel One Turn - 2,5 mm
Stone Dimensions, Diameter x Width x Hole Diameter - 180x13x32 mm
Spindle Speed - 2850 rpm
Z Axis Handwheel Feed Line - 0,005 mm
Z Axis Handwheel One Turn - 1,25 mm
Cooling Engine Power - 90 W
Dust Collection Motor Power - - W
Verge Dimensions - 1900x1950 mm
Dimensions (L x W x H) - 1100x1020x1950 mm
Net Weight - 620 Kg
Gross Weight - 710 Kg
