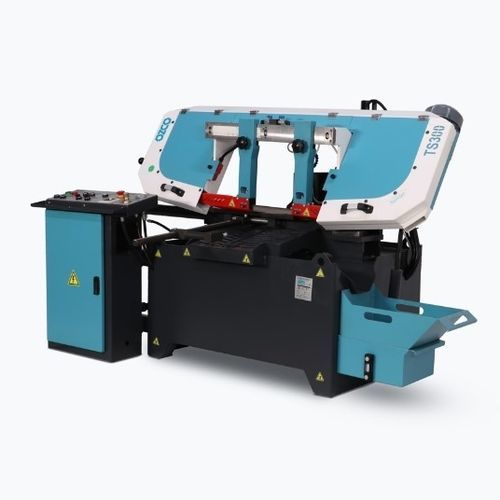

Band sawing machine TS300

for metalssemi-automaticCE

• Unlimited step between 20-100 min with inverter speed regulation/Vario system • Digital speed display • Ergonomic control panel that providing ease of use • Special design cast pulleys • Hydro-mechanical band tensioning • Domestic production powerful engine • Domestic production special design reducer • Specially designed double bearing system, reinforced material sliding system and long-lasting roller balls • Clamping pressure setting suitable for material type with adjustable clamp pressure system • Band saw system with double bearing pressure increasing cutting precision • High quality cooling engine from Italy • Chip Brush • Schneider Electrical System Hydraulic/Automatic material clamping Hydraulic/Automatic head Manual material feeding Standard Accessories • 5 Roll material stand • Bi-metal saw blade mounted on the machine Optional Accessories: Replacement saw band: 36603/4 27x0,9x3660mm- 3/4 diş 36604/6 27x0,9x3660mm- 4/6 diş 36605/8 27x0,9x3660mm- 5/8 diş Main Motor Power - 1,5 kW, 380 V Speed Range - 20-100 m/dak rpm Number of Steps - Inverter/Veriable Material feeding height - 760 mm Clamp Opening Range - 0-375 mm Clamp Height - 190 mm Driving Motor Power - - Hydraulic Motor Power - 0.18 Kw Cooling Engine Power - 0.12 W Machine Size - 2005x1260x1275 mm Weight - 630 Kg
