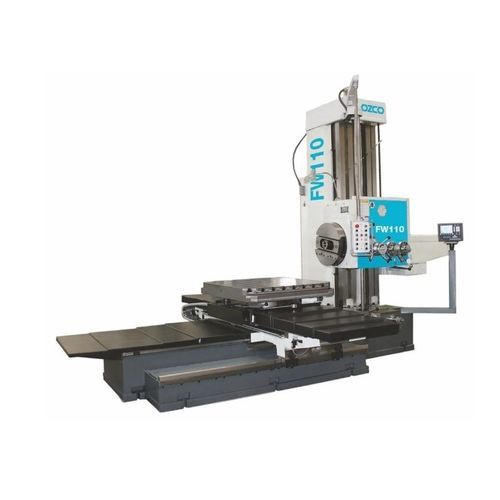

Conventional boring milling machine FW110 universal3-axisrigid
Add to favorites
Compare this product
Characteristics
- Control type
- conventional
- Spindle orientation
- universal
- Number of axes
- 3-axis
- Other characteristics
- rigid
- X travel
1,000 mm
(39.37 in)- Y travel
900 mm
(35.43 in)- Z travel
1,400 mm
(55.12 in)- Power
7.5 kW
(10.19716 hp)
Description
• High quality casting
• Special bearing system that expands Y axis travel
• High-quality quill bearing
• Special quill made of high quality steel alloy
• Easy-to-use ergonomic control panel
• automatic lubrication
• Cooling system
• Newal Brand Digital Readout in X,Y axis
• Reduction Sleeve ISO50/MK5
• M8-M24 Tapping Quill
• Drilling Quill
• Collet Set
• Newal Brand Digital Readout in X,Y axis
• Reduction Sleeve ISO50/MK5
• M8-M24 Tapping Quill
• Drilling Quill
• Collet Set
Diameter of Quill - 110 mm
Spindle Taper - ISO50
Spindle Speed - 8-1000 rpm
Table Size - 1100x1000 mm
Max. Table Capacity - 2.500 Kg
T Slot Dimensions and Quantity - 22 mm / 7
Machine Size - 5270x2480x2920 mm
Weight - 12.500 Kg
