Vertical CNC machining center VM11
3-axiswith rotary tableBT 40

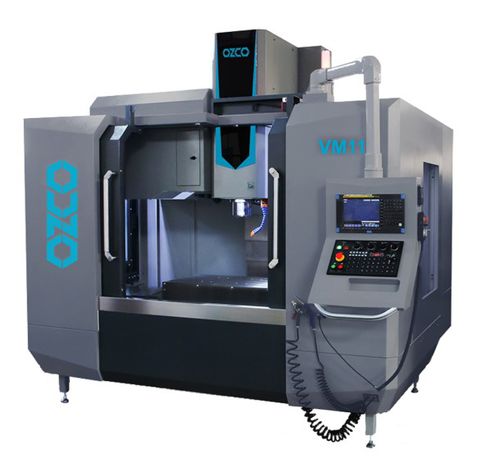

Vertical CNC machining center - VM11 - Ozco Metalworking Machines - 3-axis / with rotary table / BT 40
Vertical CNC machining center - VM11 - Ozco Metalworking Machines - 3-axis / with rotary table / BT 40
Vertical CNC machining center - VM11 - Ozco Metalworking Machines - 3-axis / with rotary table / BT 40 - image - 2
Add to favorites
Compare this product


Characteristics

Number of axes
3-axis
Spindle orientation
vertical
Structure
with rotary table
Spindle mount
BT 40
Number of tool stations
24 tools
Other characteristics
CE
X travel

1,100 mm
(43.31 in)

Y travel

600 mm
(23.62 in)

Z travel

600 mm
(23.62 in)

Rotational speed

10,000 rpm
(62,832 rad.min-1)

Power

11 kW, 15 kW
(14.96 hp, 20.39 hp)

Work feed X-axis

36 m/min

Work feed Y-axis

36 m/min

Work feed Z-axis

30 m/min

Table load capacity

1,000 kg
(2,205 lb)

Positioning accuracy

0.005 mm
(0.0002 in)

Repeatability

0.003 mm
(0.00012 in)

Weight

7,200 kg
(15,873.28 lb)

Description

• Ball screws (HIWIN, Taiwan) • Bearings (NSK, Japan) • Spindle (ROYAL, Taiwan) • Electric system (SCHNEIDER, France) • Central lubrication unit (HERG, Japan) • Tool magazine (OKADA / POJU, Taiwan) • Mitsubishi M80A controller • 15" LCD screen control panel • 20 bar CTS (Coolant Through Spindle) • Air gun and coolant gun • Rigid tapping • M30 automatic power off • Full moulding package in controller • Heat exchanger on electrical cabinet • Leveling screws and pads • Worklight • Alarm light • Central lubrication unit • Telescope cover for guideway • Spindle head coolant system • Air through spindle • R232 Interface • P05 10.000 soft corners function in controller • 4 bar pump with cabin wash device • MPG handwheel • Fully enclosed cabin • Chain type chip conveyor • Fanuc 0i-MF plus control unit Table Size - 1200x600 mm T-slot Size - 5/18/125 mm Spindle-Table Distance - 120-720 mm Spindle-Column Distance - 650 mm Spindle Diameter - 150 mm X,Y,Z Motor Power - 3/3/3 kW Cutting Feet Speed - 10.000 mm/dak Max Tool Diameter - 80/130 mm Control Unit - Mitsubishi M80A Driver and Encoder - Mitsubishi Main Motor Torque Power - 70/118 Nm X,Y,Z Guideway - 45/45/45 mm X,Y,Z Leadscrew Diameter - 40/40/40 mm
